Rectifier Yamaha Outboard [Refer to Fitments] (RMS020-102113)


Title: RECTIFIER YAMAHA OUTBOARD RFR FITMENTS (RMS020-102113)
Price:
Sale price$406.99

Description

Brand new aftermarket voltage regulator rectifier.

  • Direct replacement to the original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • Higher grade of electric components.
  • The quality exceeds the OEM equipment
  • All products shipped are tested

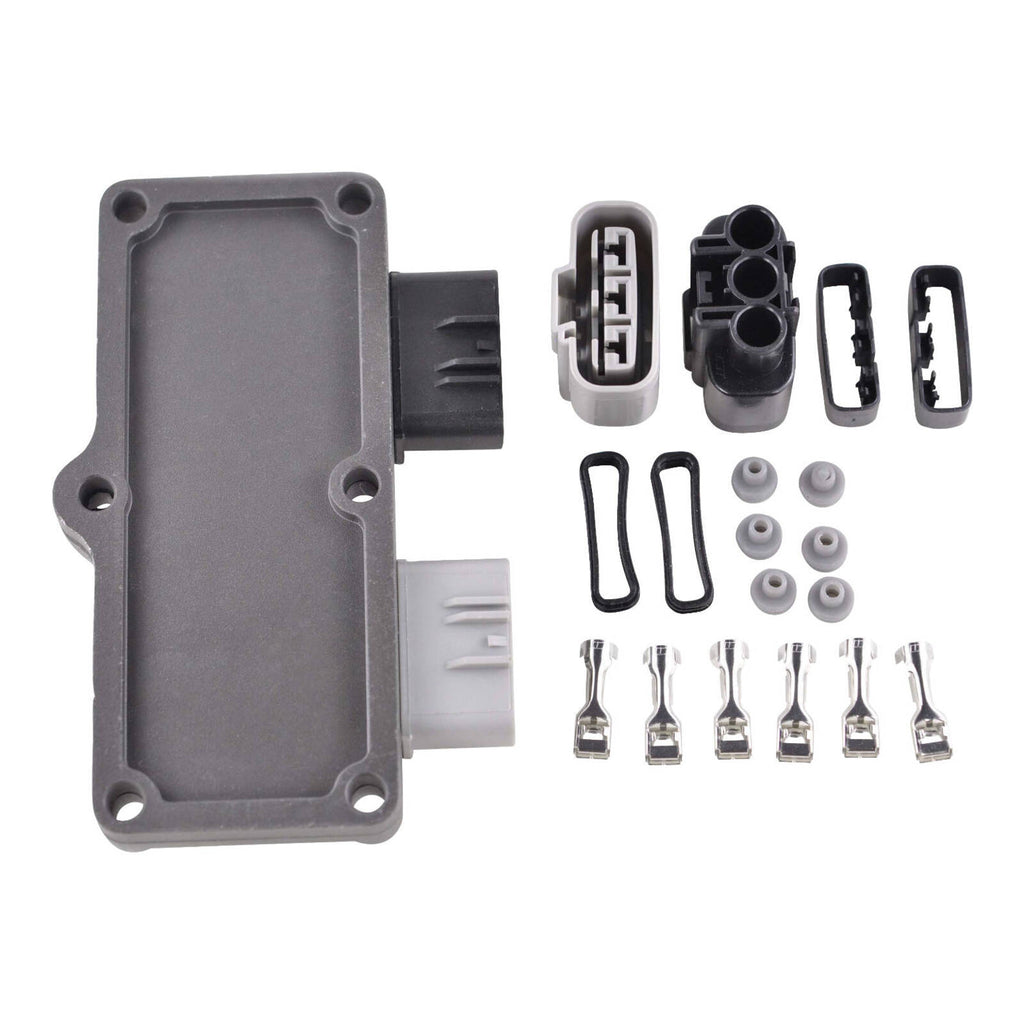

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before installing the new voltage regulator rectifier:

  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier.
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

  • Width: 58 mm
  • Length: 136 mm
  • Height: 25 mm
  • Wires length: 110 mm

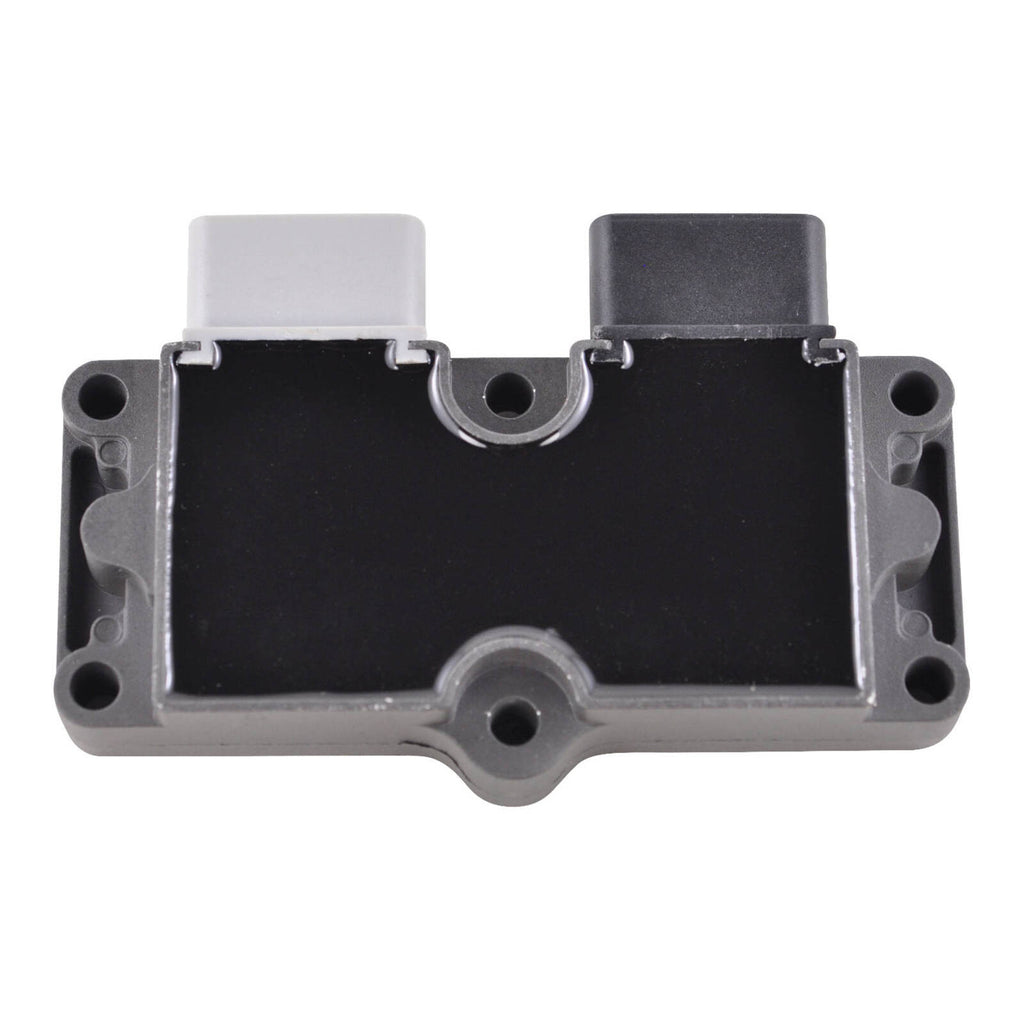

  • Distance between fixation holes centre to centre: 46 mm, 62 mm, 125 mm

Other specifications:

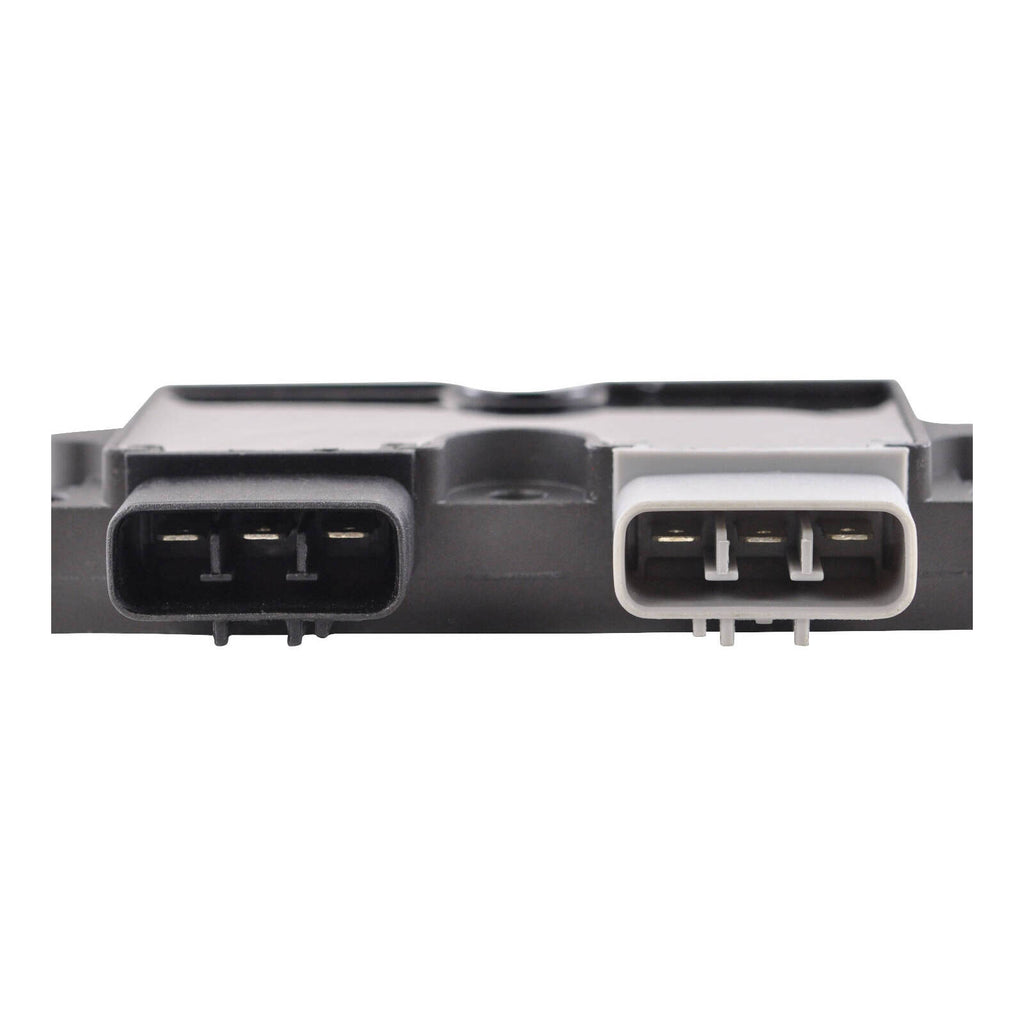

  • Number of plugs: 2
  • Number of pins: 6
  • Number of wires: 6
  • Minimum Charging Voltage: 14.5 V +/- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: < 15 V
  • Operation Temperature: -20°C to 85°C
