Stator + Gasket Yamaha YXR700 YXM700 YXC700 ‘90-’97


Price:
Sale price$511.99

Description

Direct replacement to your original unit.

  • Plug-and-play, direct fit, easy installation.
  • All product shipped are tested

Stator:

  • Highest grade of lamination materials
  • Highest grade of copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included

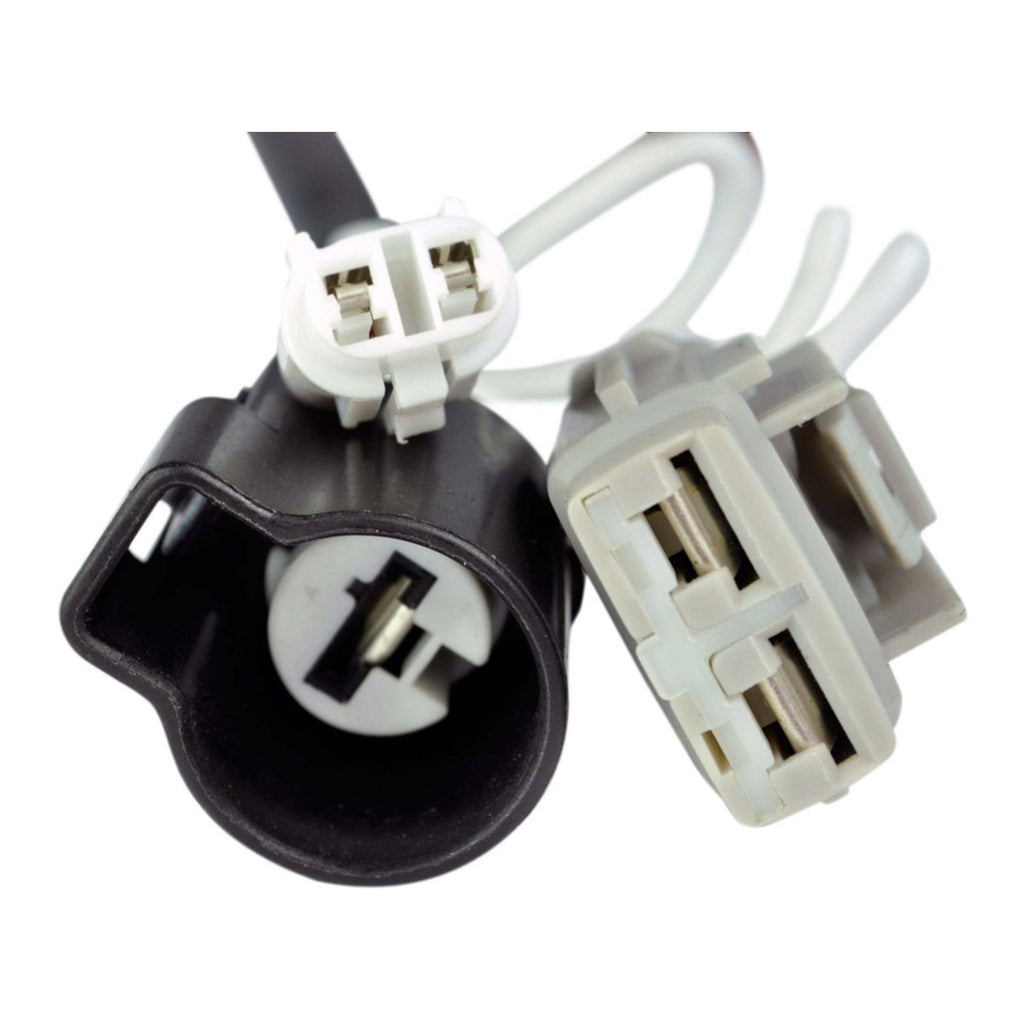

  • Connector included
  • Rubber grommet included

Specifications:

  • Stator Dimensions:

    • Interior Diameter: 41 mm
    • Exterior Diameter: 105 mm
    • Thickness: 19 mm
    • Length of Wires Stator to Grommet: 65 mm
    • Length of Wires Grommet to Plug: 400 mm
    • Length of Pickup Coil's Wire to Grommet: 65 mm
  • Other Specifications:

    • Number of Wires: 5
    • Number of Plugs: 3
    • Number of Pins: 5
  • Wire to Wire Resistance:

    • Alternator: White to White = 0.4 ohms +/- 20%
    • Pickup: White to Grey = 500 ohms +/- 20%
