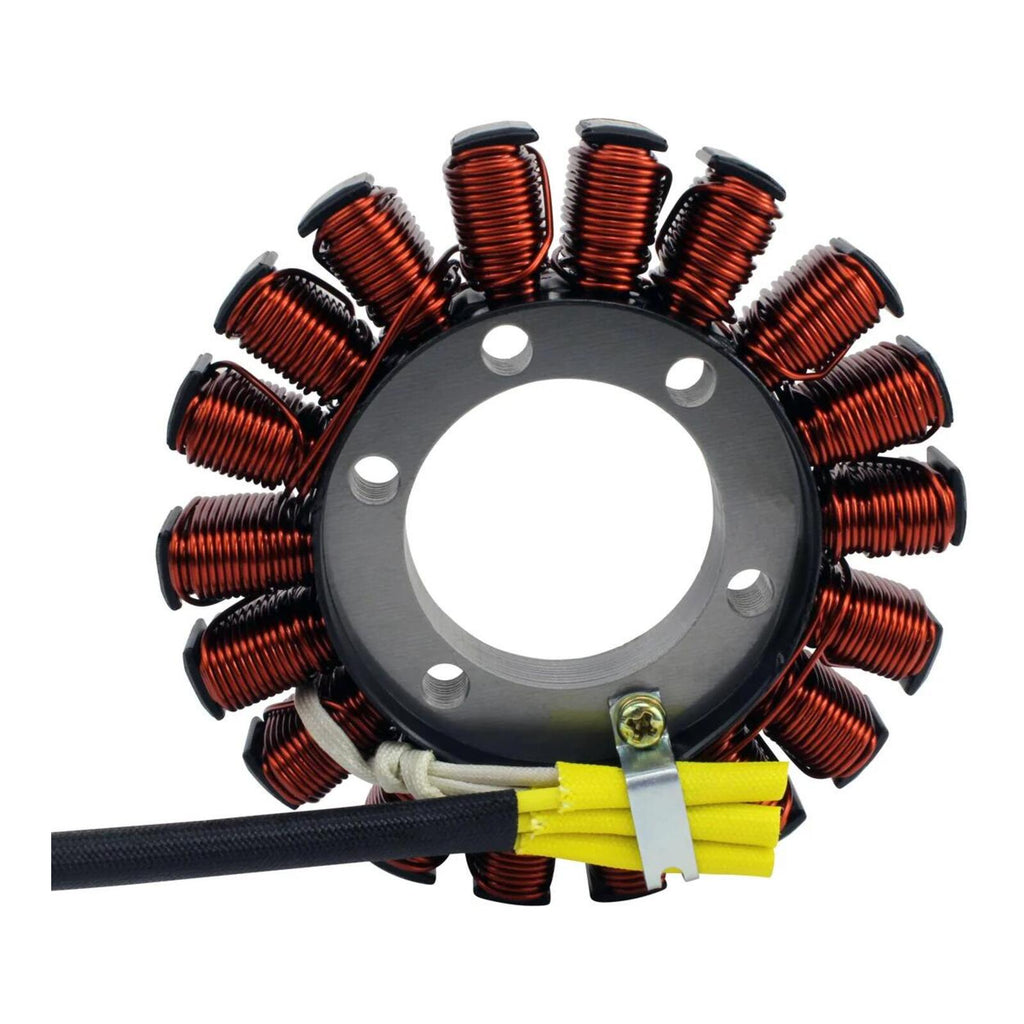

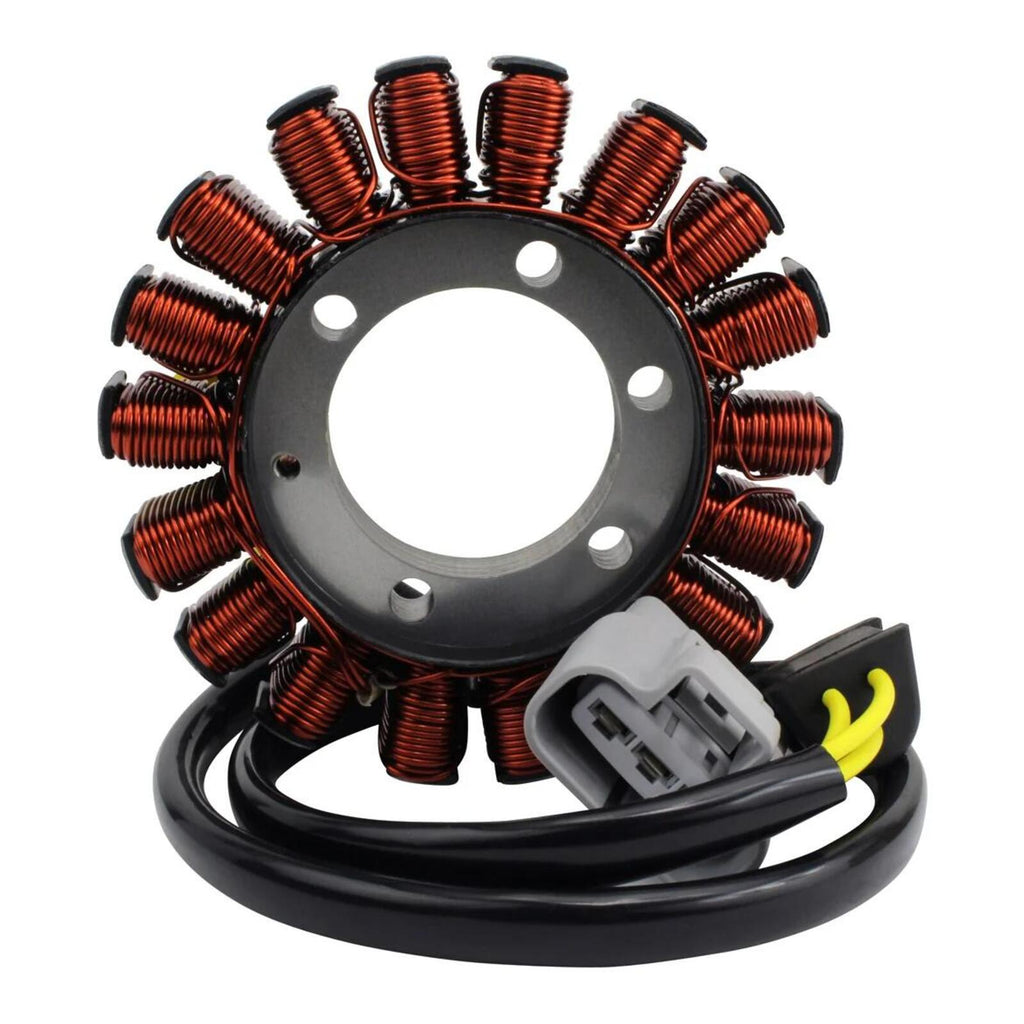

Improved Stator KTM Adventure/R & Super Duke Model


Price:
Sale price$432.99

Description

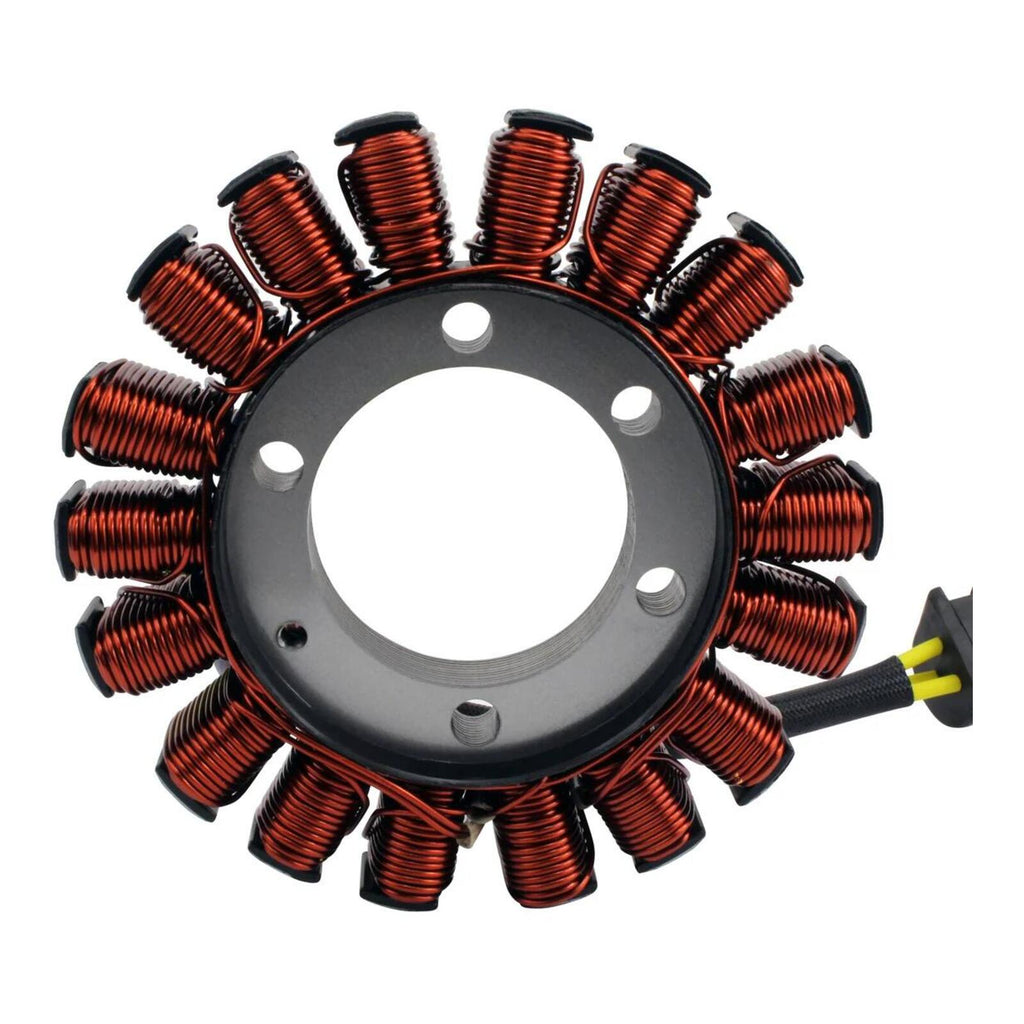

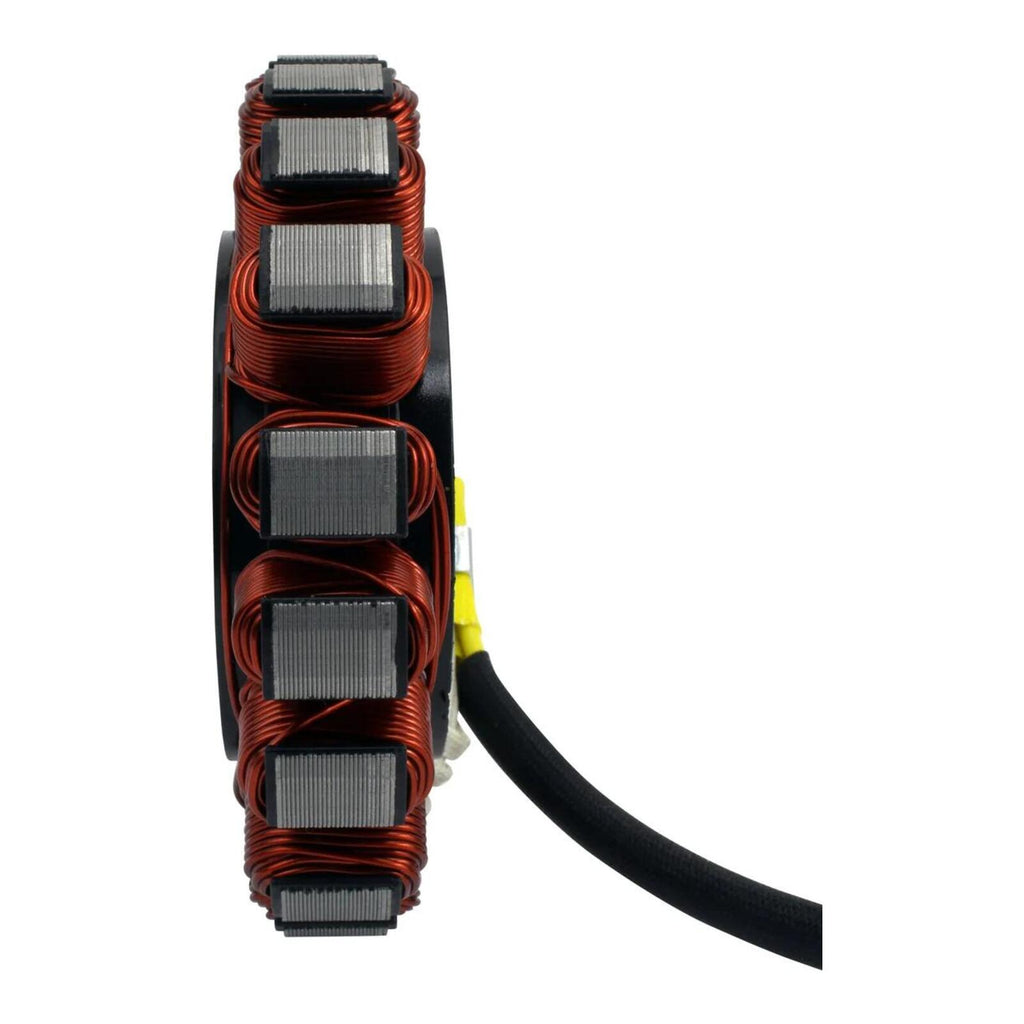

Brand-new aftermarket improved stator.

Features:

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.

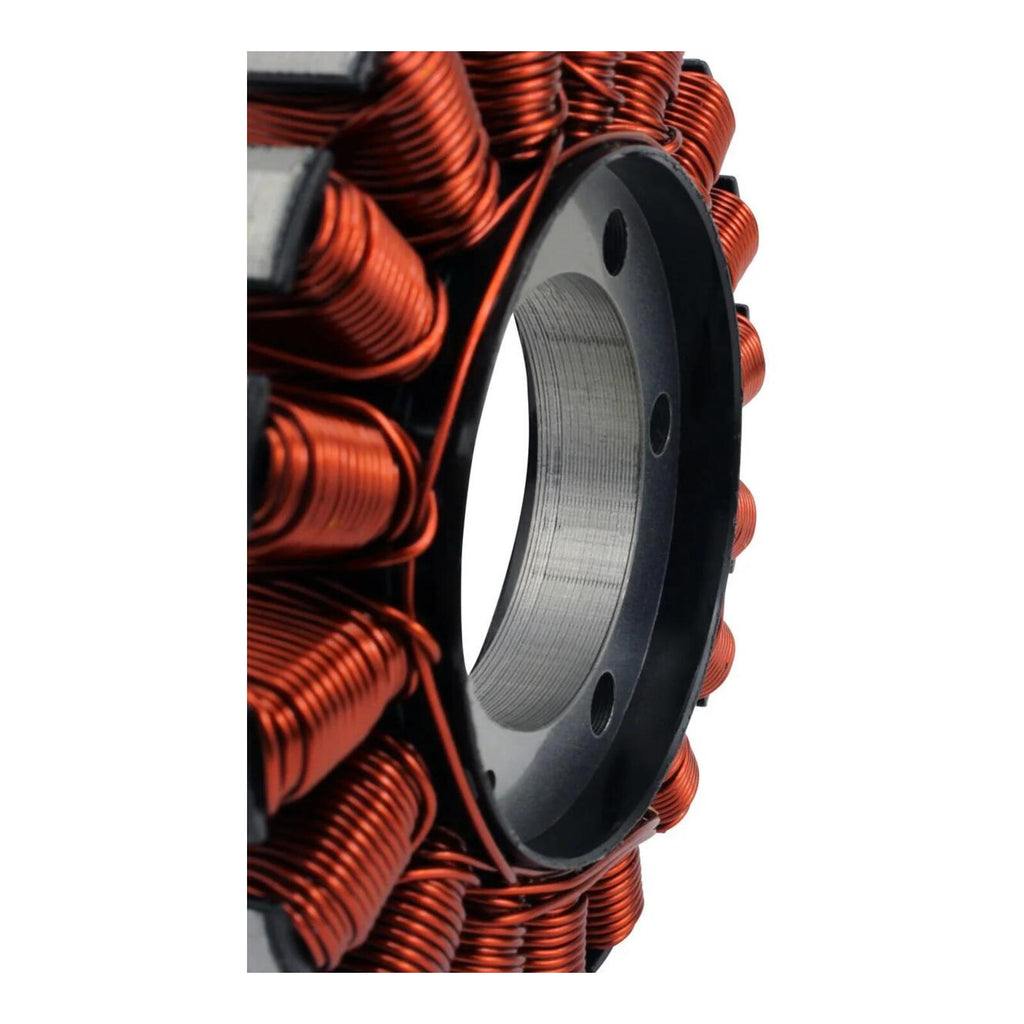

  • Highest grade of thin silicone steel laminations.

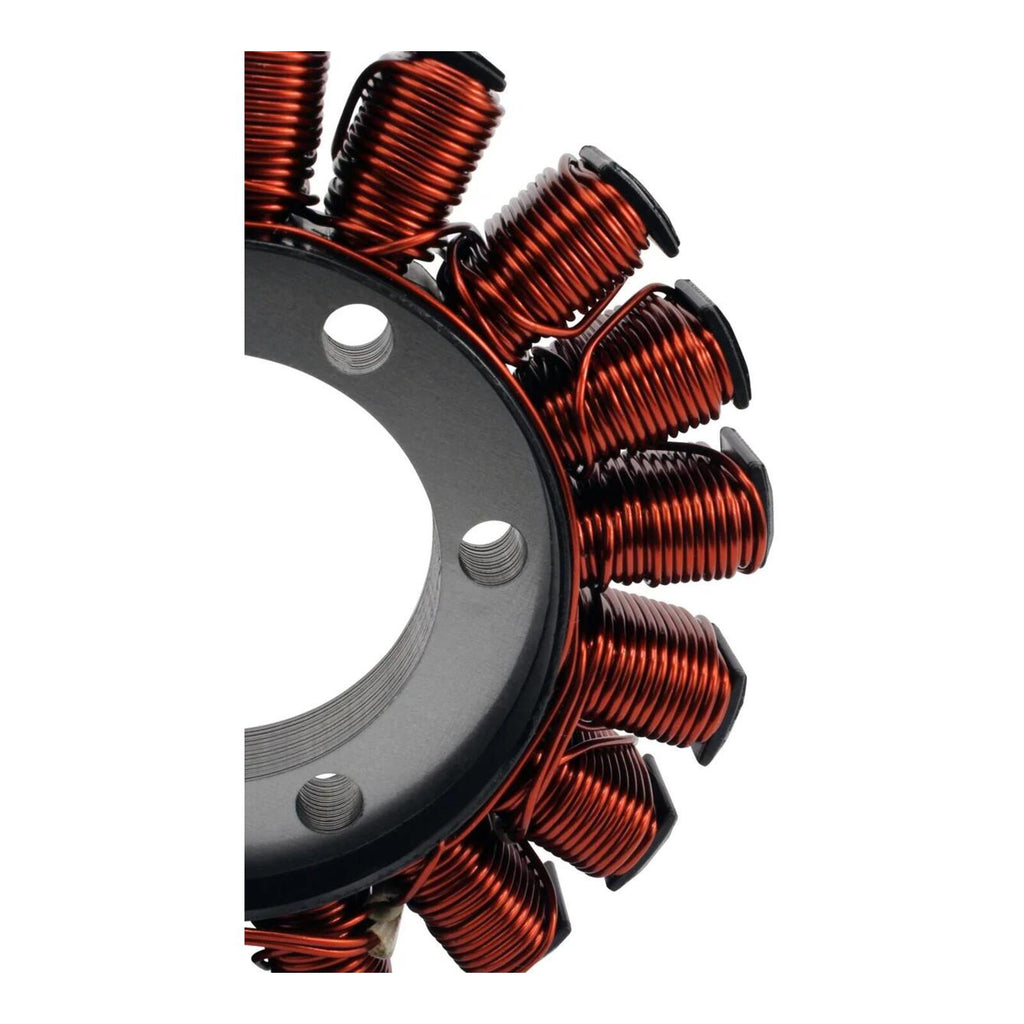

  • Highest grade of copper winding, resistant to 200 degrees Celsius.
  • High temperature wires.

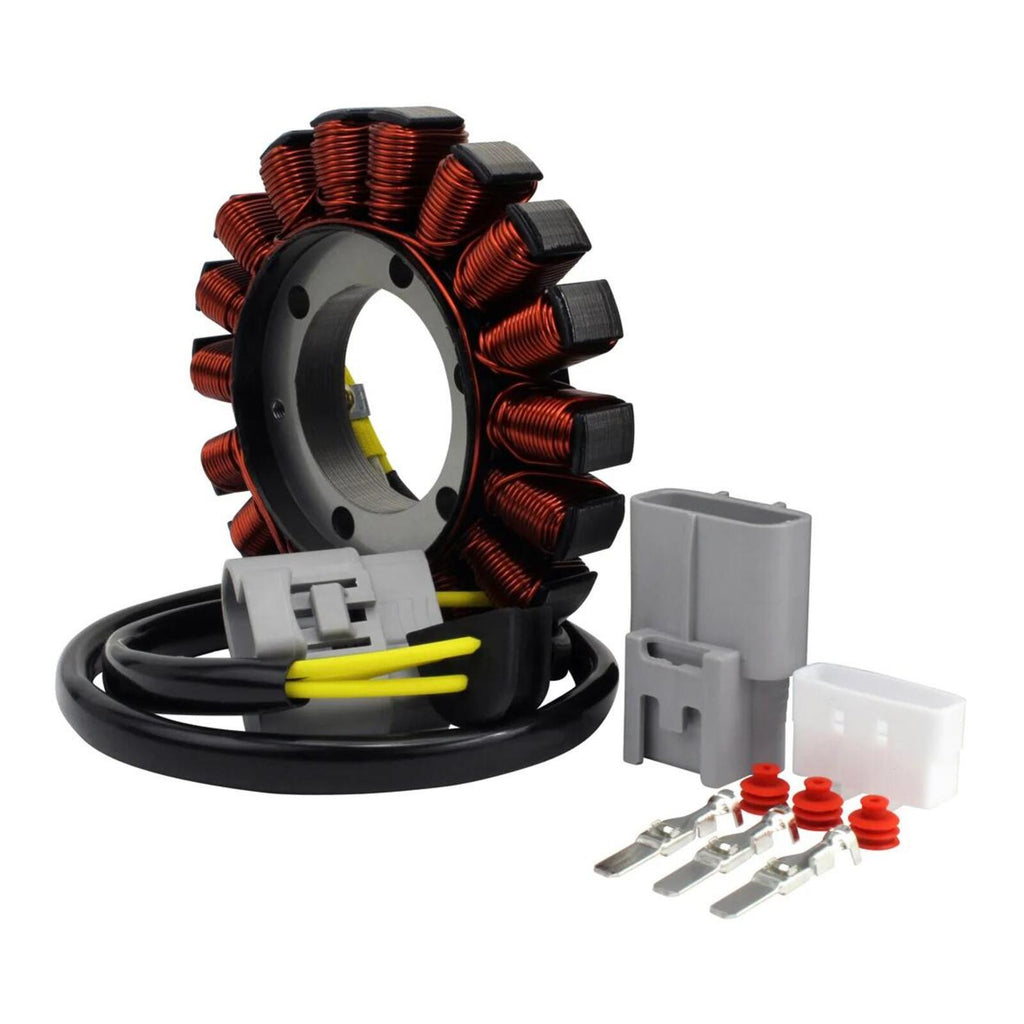

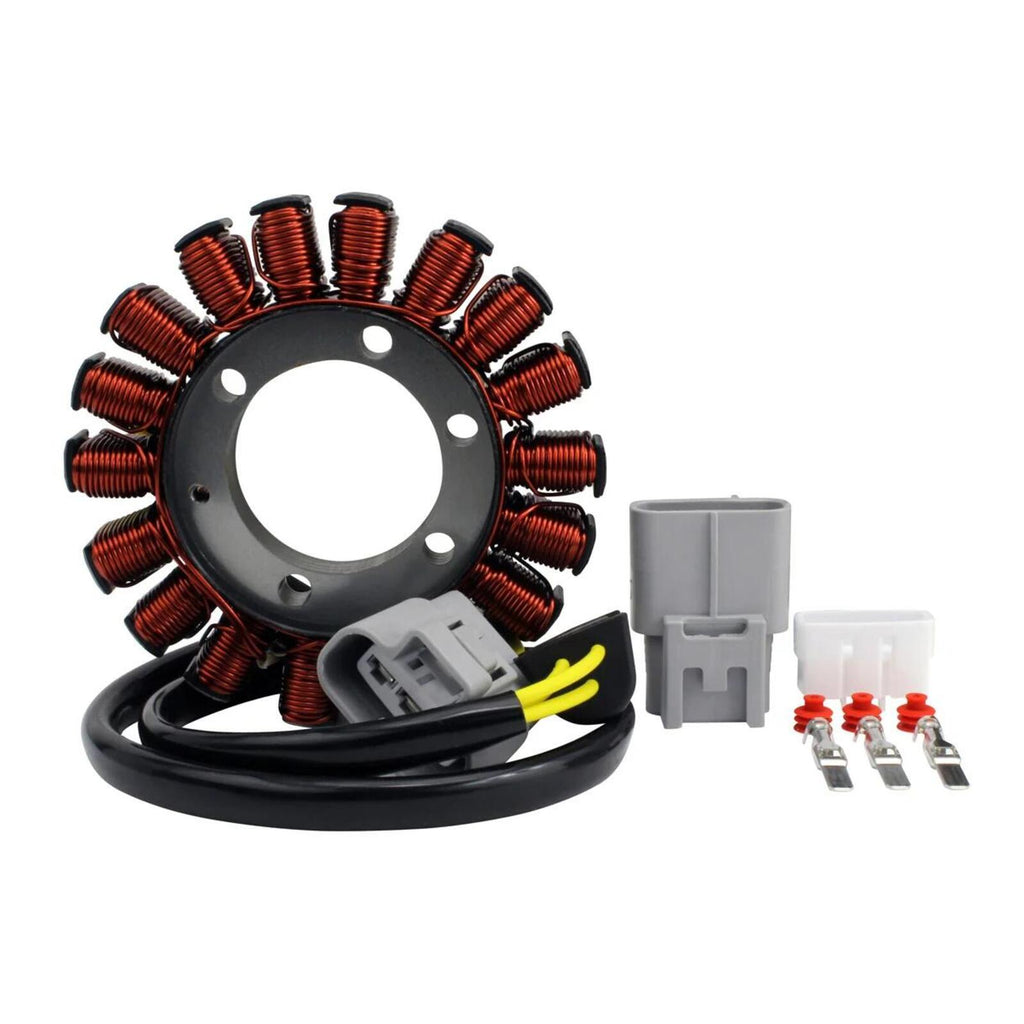

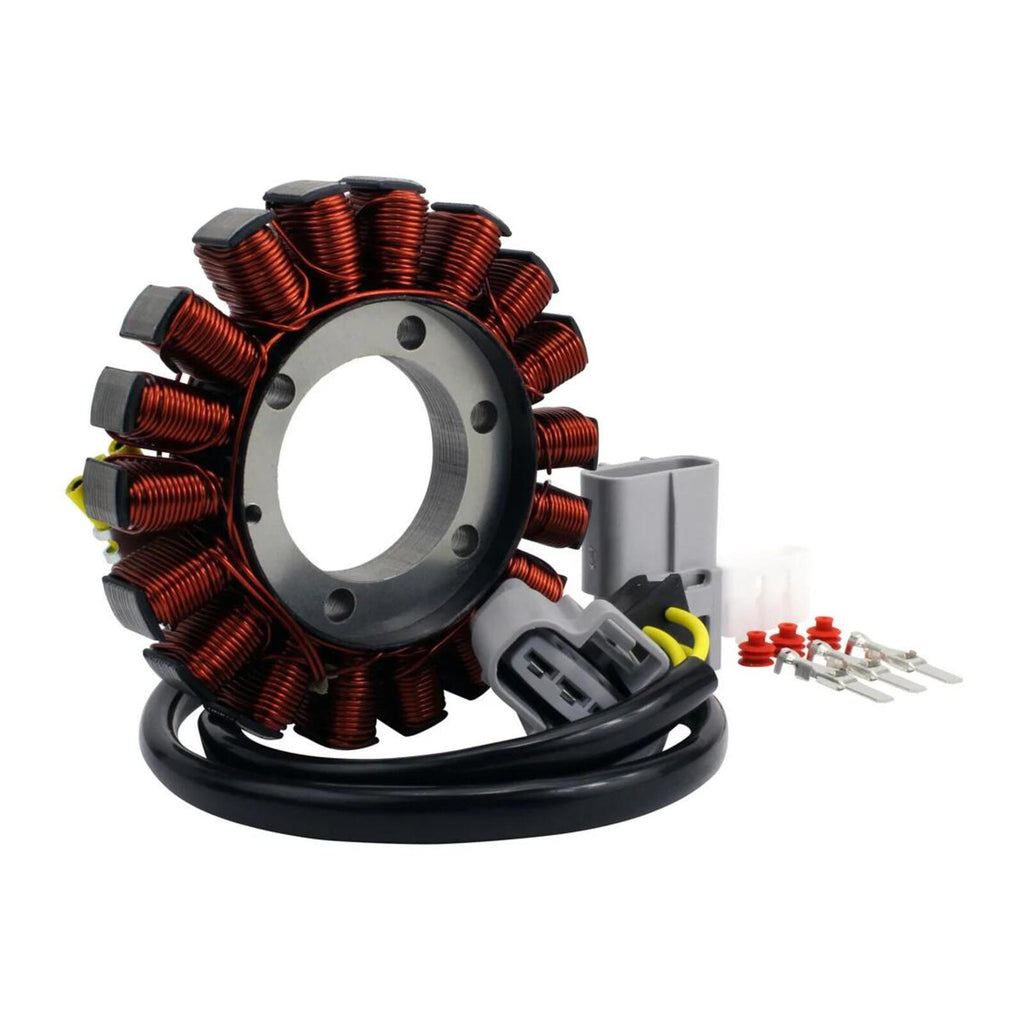

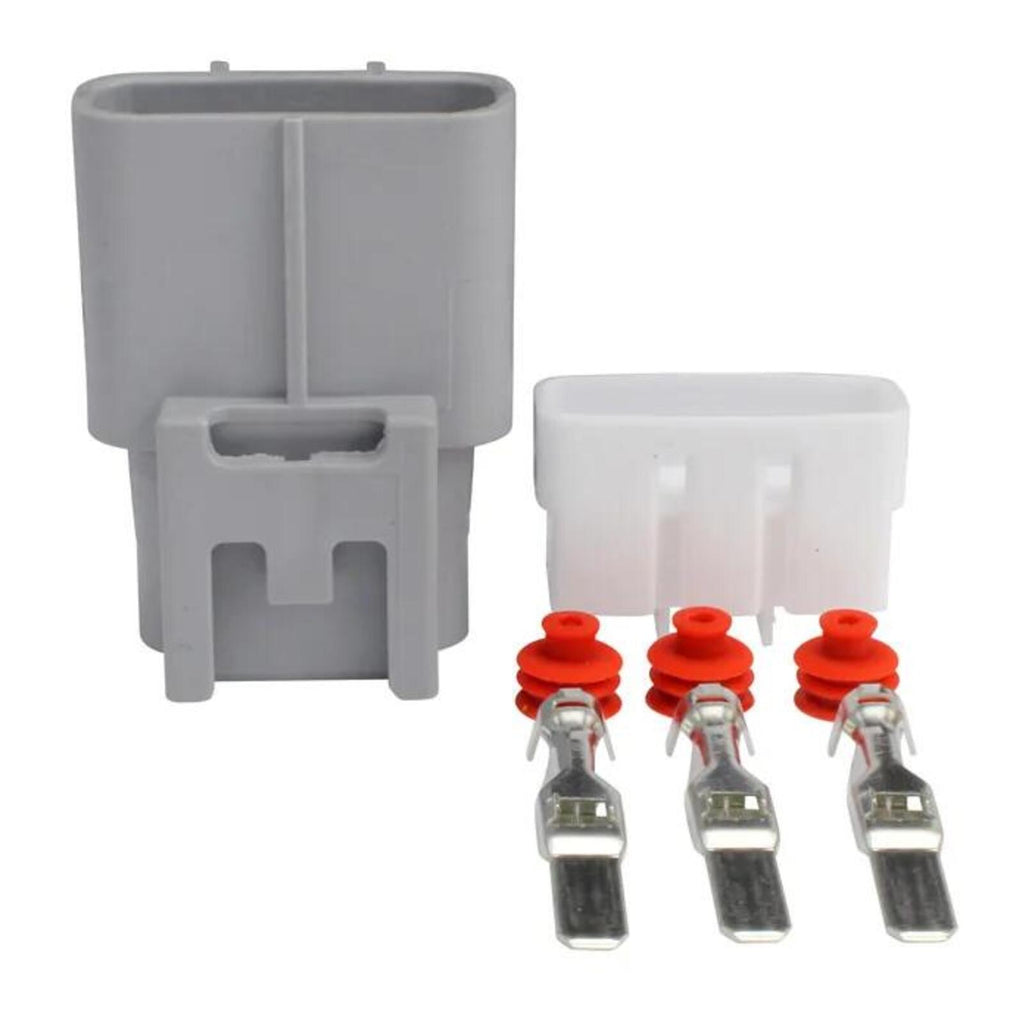

  • Connectors included.

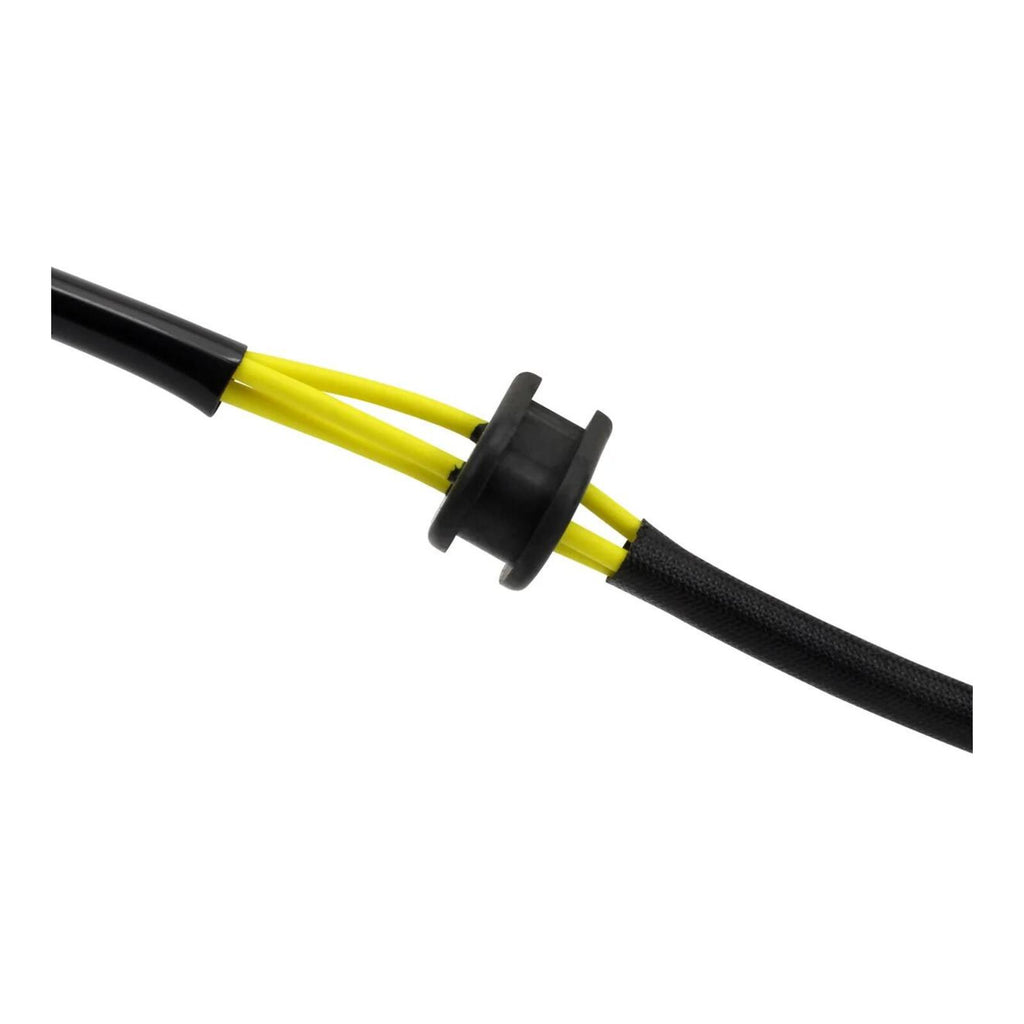

  • Rubber grommet included.
  • All products shipped are tested.

Specifications:

Di mensions

  • Interior diameter: 42 mm
  • Exterior diameter: 107 mm
  • Thickness: 12 mm
  • Length of wires stator to grommet: 110 mm
  • Length of wires grommet to plug: 600 mm

Other specifications

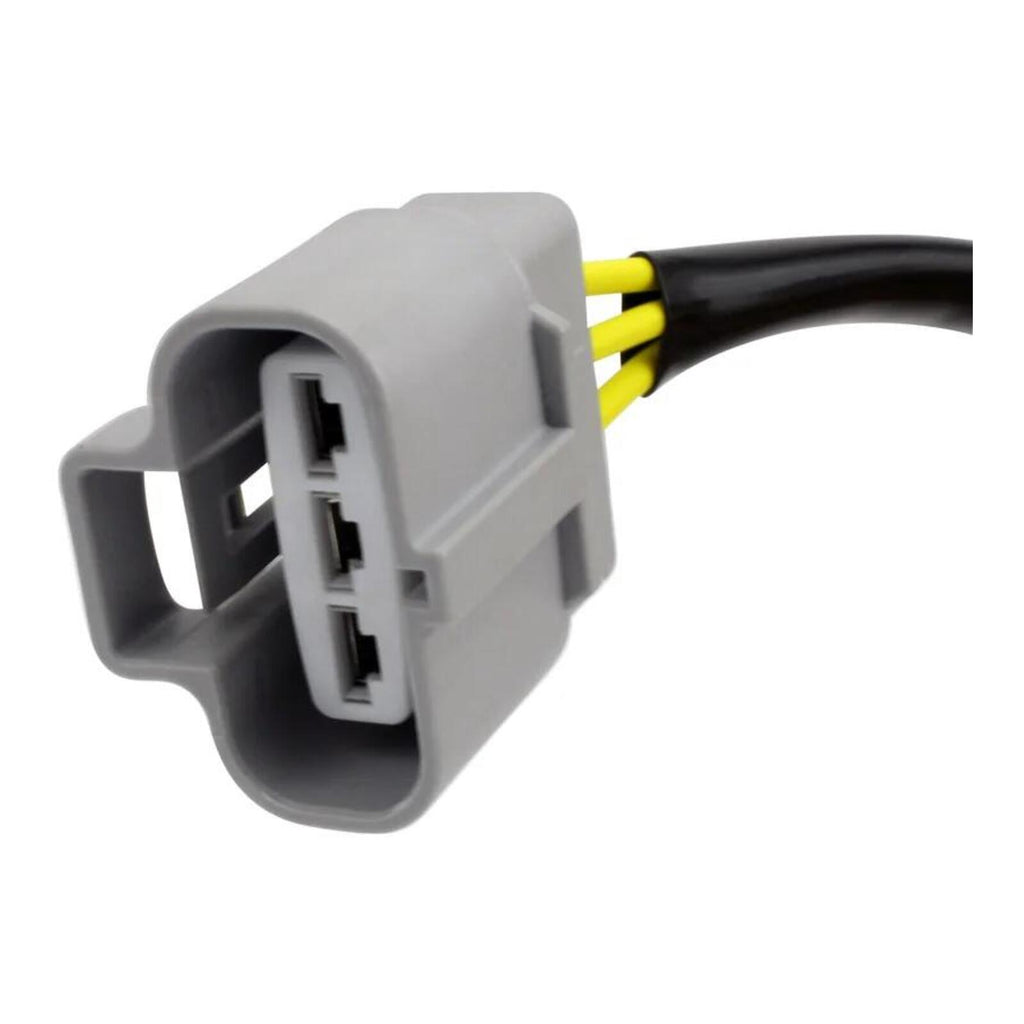

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3
  • Number of poles: 18

Wire-to-wire resistance

  • Alternator: Yellow to Yellow = 0.6 ohms +/-20%
  • Alternator: Yellow to ground = O.L

Brand-new aftermarket improved stator.

Features:

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • Highest grade of thin silicone steel laminations.
  • Highest grade of copper winding, resistant to 200 degrees Celsius.
  • High temperature wires.
  • Connectors included.
  • Rubber grommet included.
  • All products shipped are tested.

Specifications:

Di mensions

  • Interior diameter: 42 mm
  • Exterior diameter: 107 mm
  • Thickness: 12 mm
  • Length of wires stator to grommet: 110 mm
  • Length of wires grommet to plug: 600 mm

Other specifications

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3
  • Number of poles: 18

Wire-to-wire resistance

  • Alternator: Yellow to Yellow = 0.6 ohms +/-20%
  • Alternator: Yellow to ground = O.L
