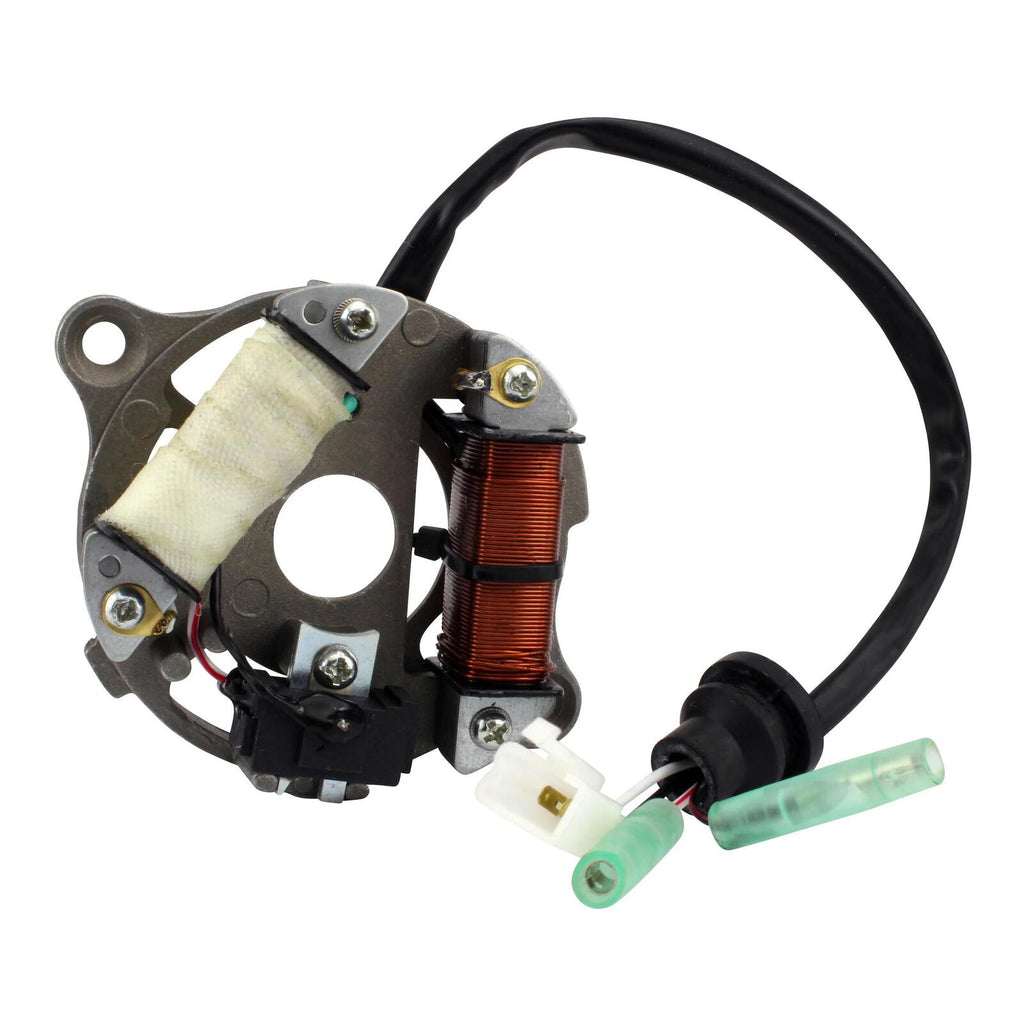

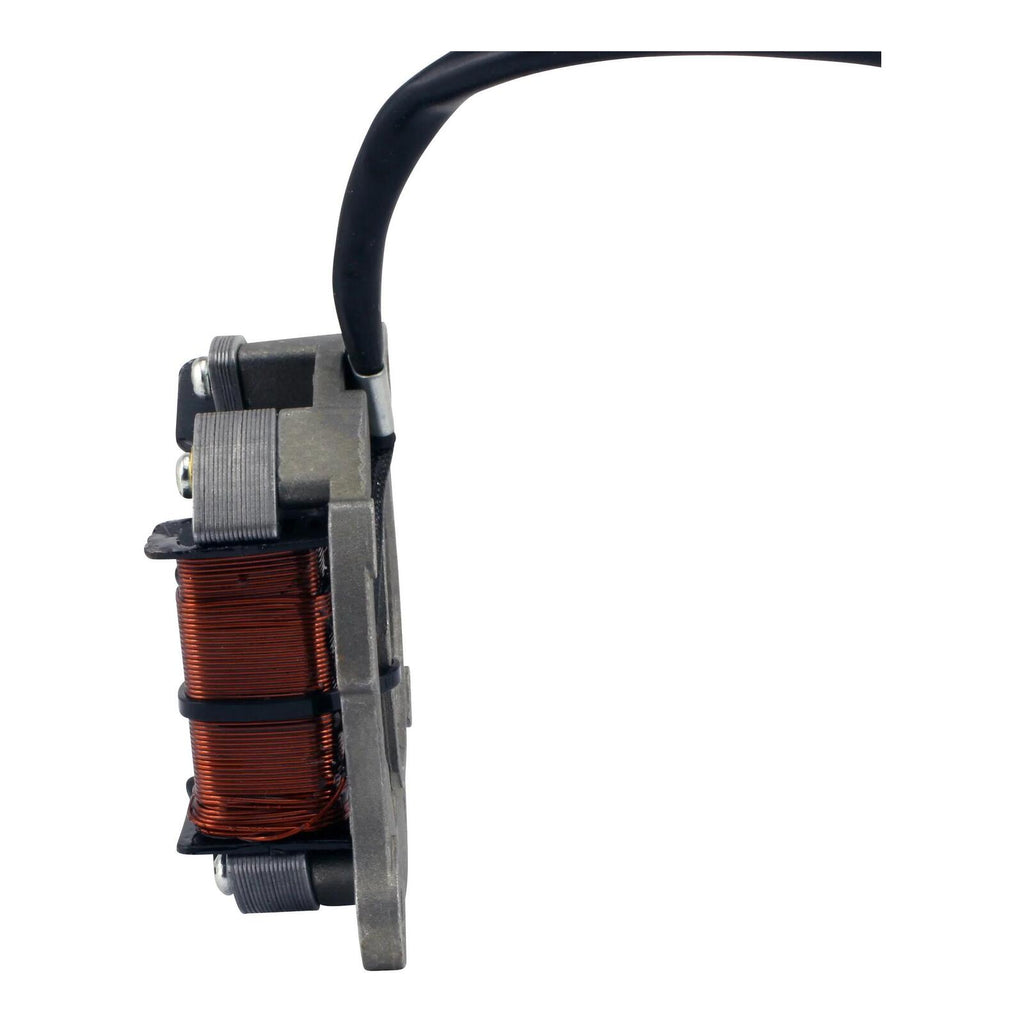

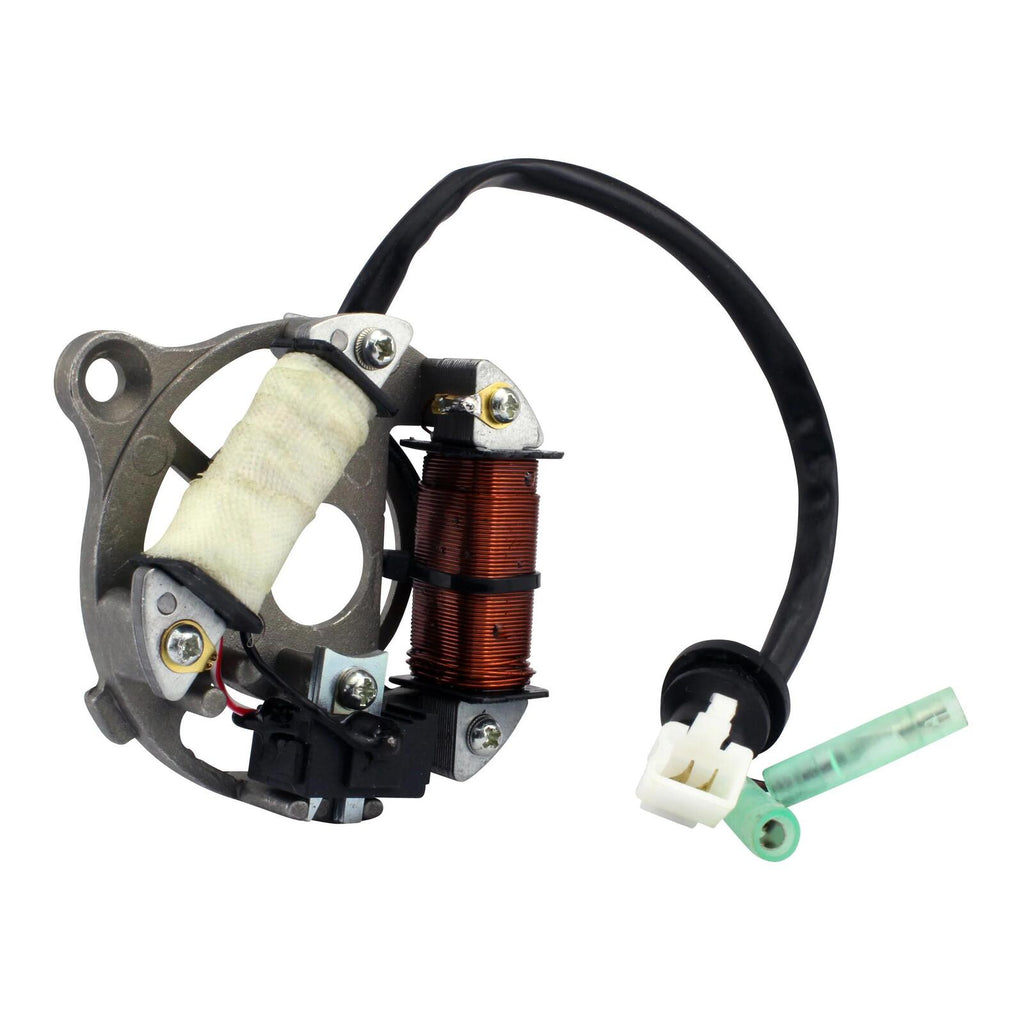

Generator Stator - Yamaha PW50 ('01-'26) (RMS010-108395)


Price:
Sale price$150.99

Description

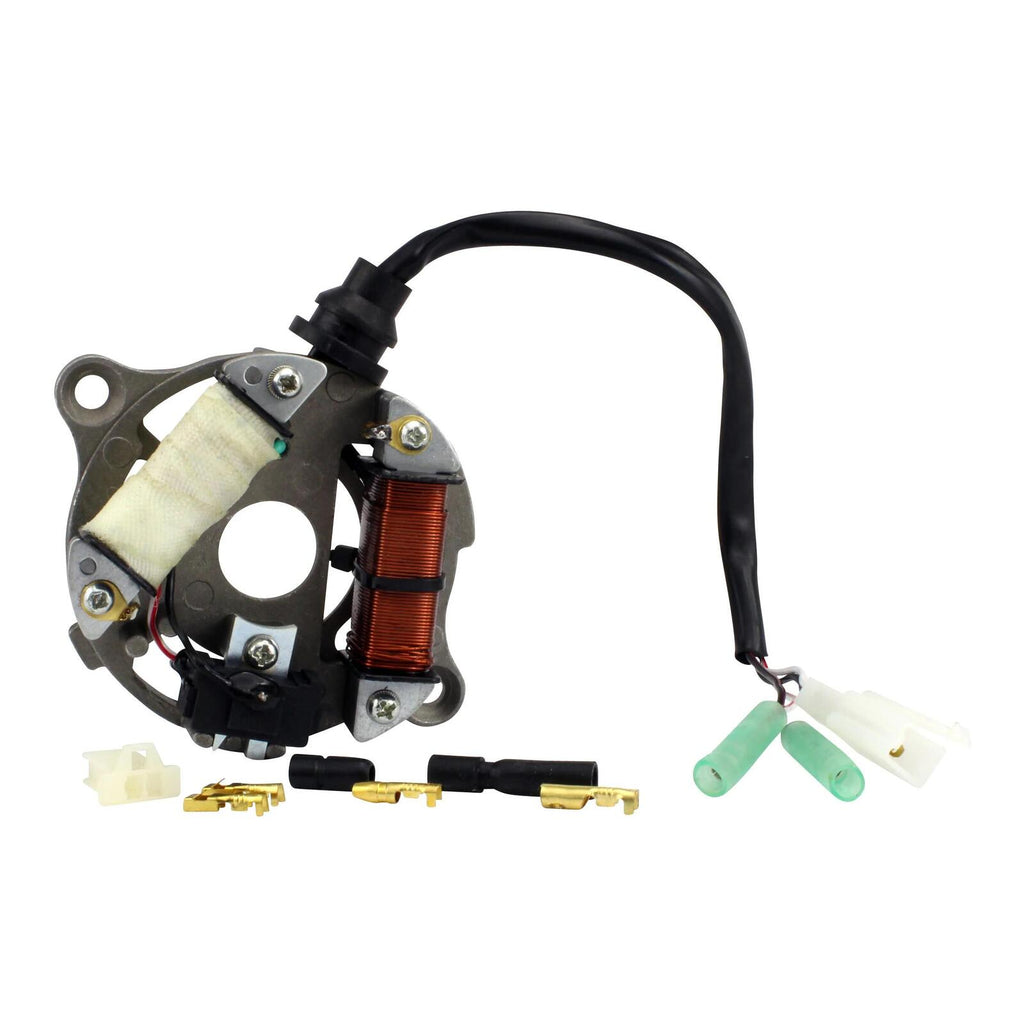

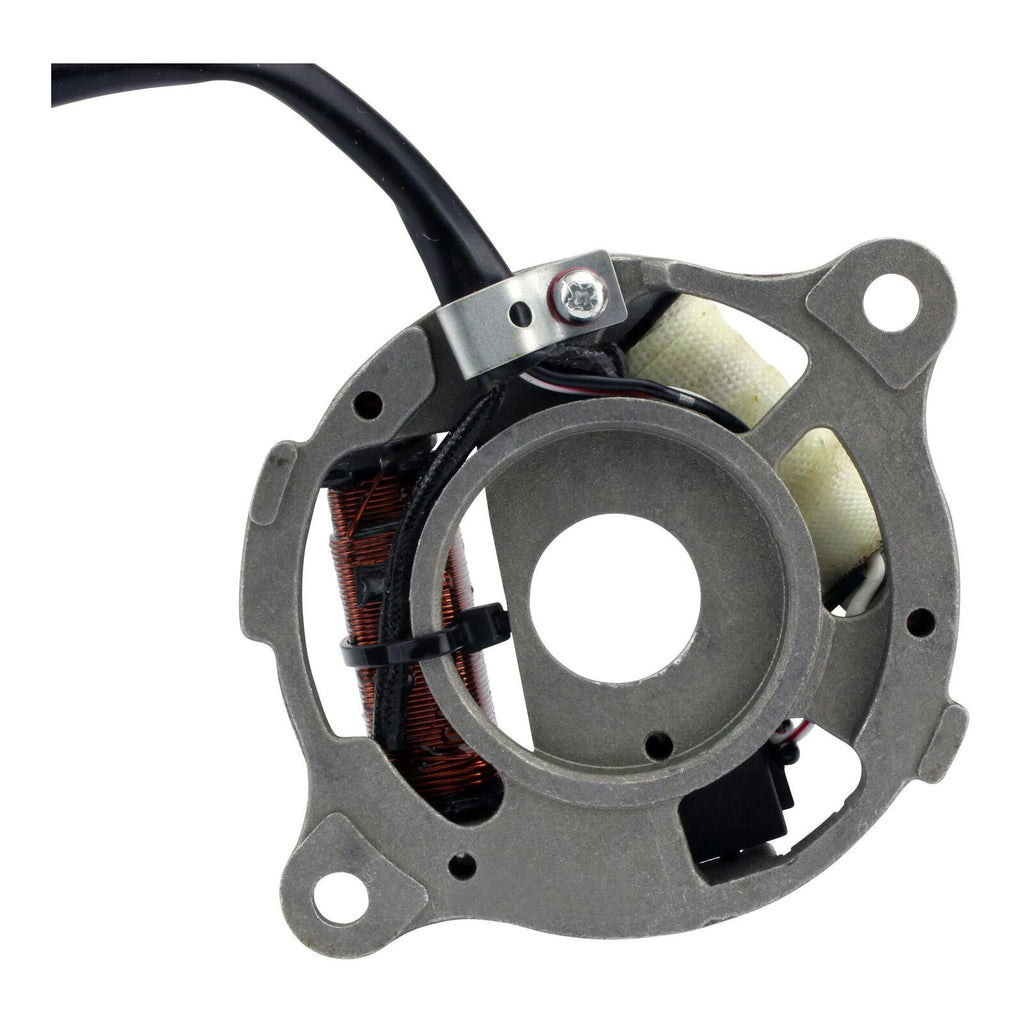

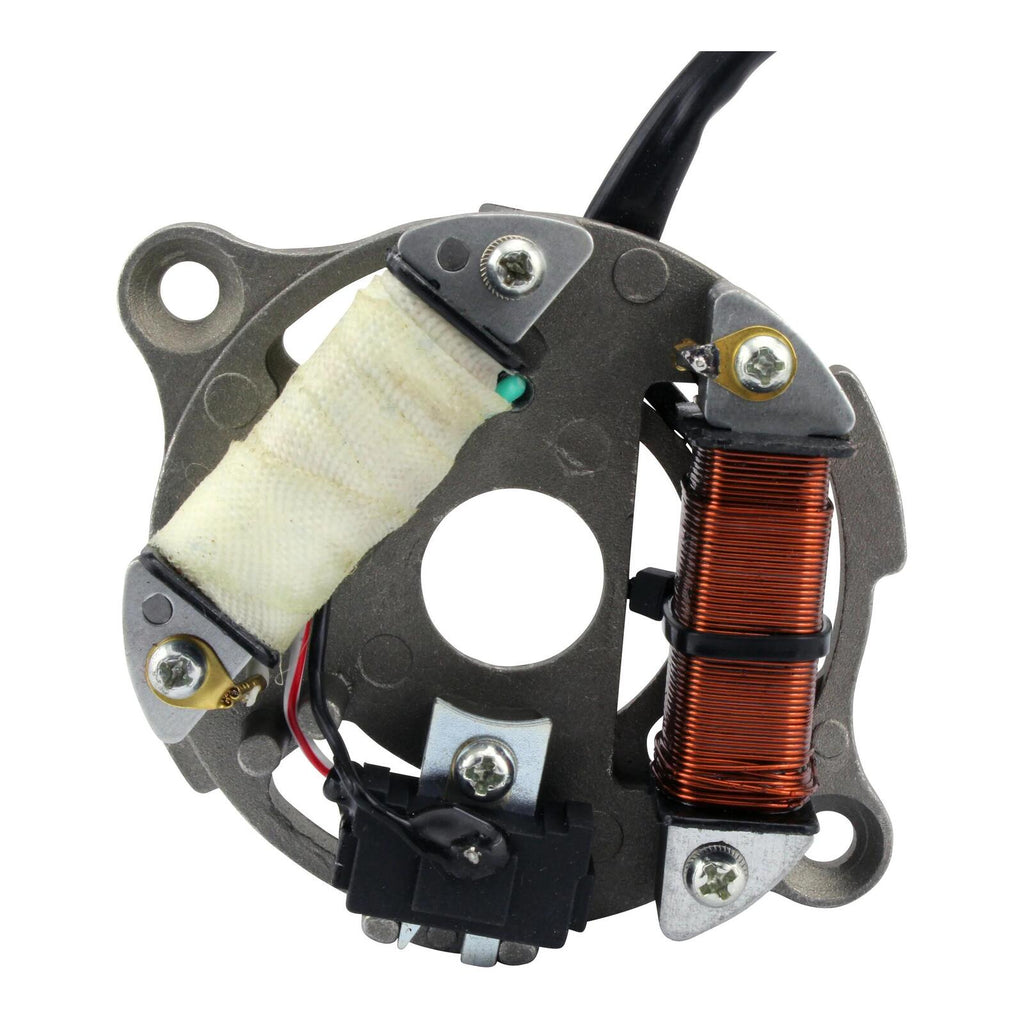

Brand new aftermarket stator designed as a direct replacement for the original unit. Manufactured using premium materials for reliable charging performance and long service life, this stator features high-grade copper windings, quality laminations, and comes complete with the pickup pulsar coil, connectors, rubber grommet, and back plate for straightforward installation.

Features:

  • Direct replacement for the original stator.
  • Plug-and-play design for easy installation.
  • Manufactured using high-grade lamination materials.
  • Premium copper windings rated to withstand temperatures up to 200°C.
  • Pickup pulsar coil included.

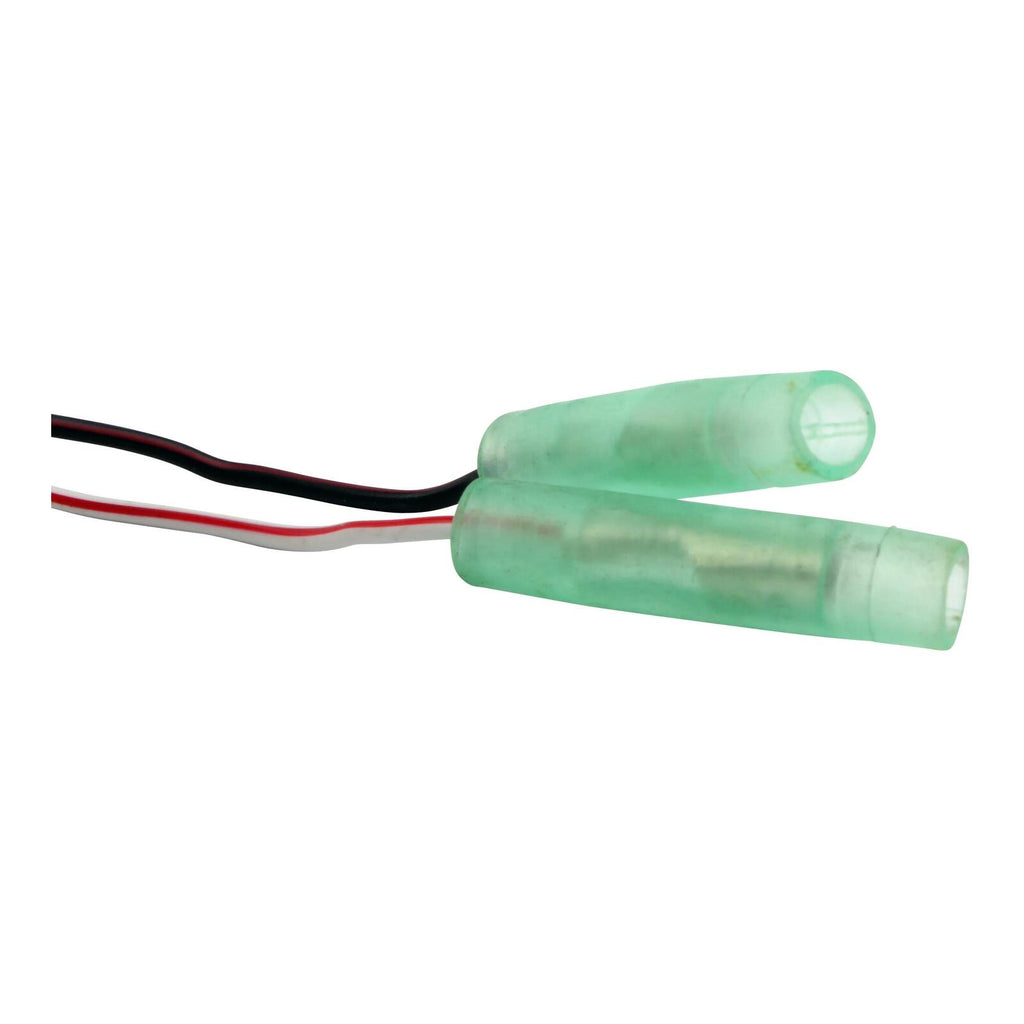

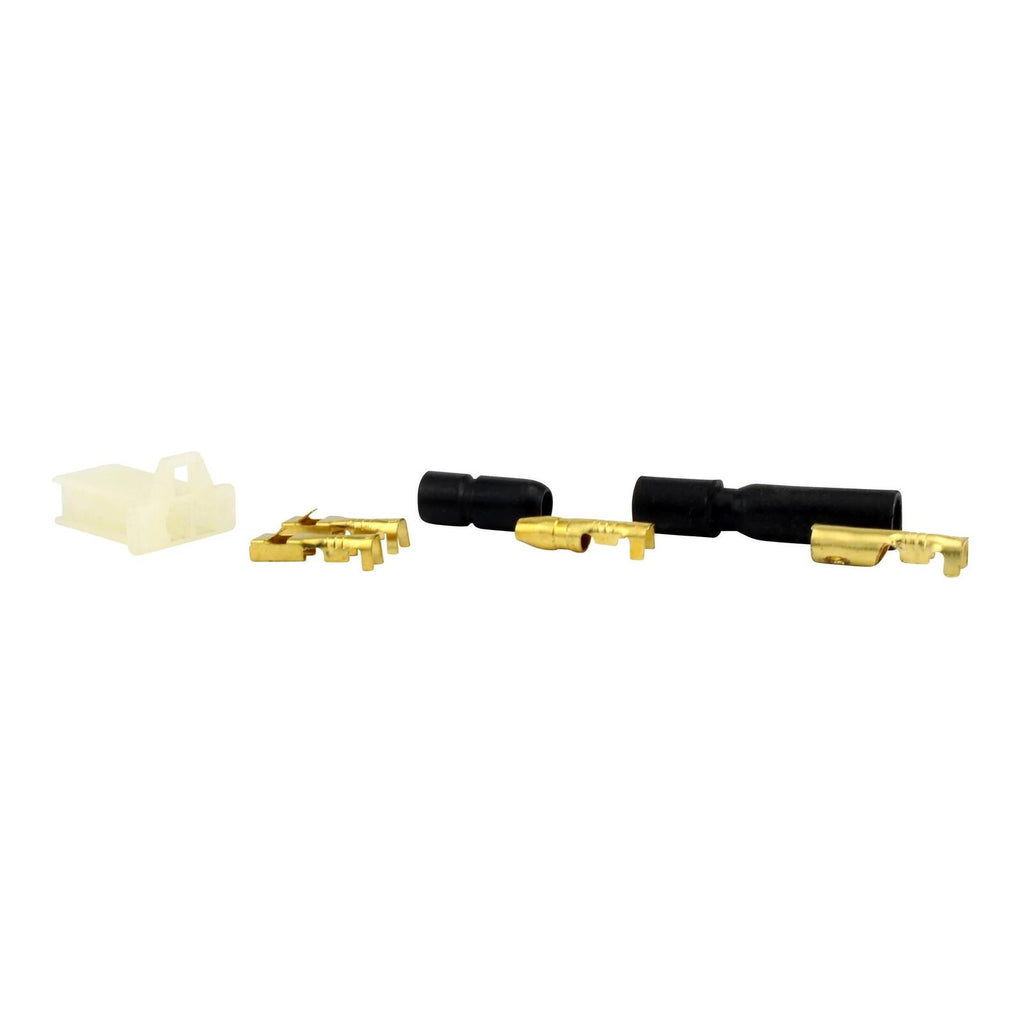

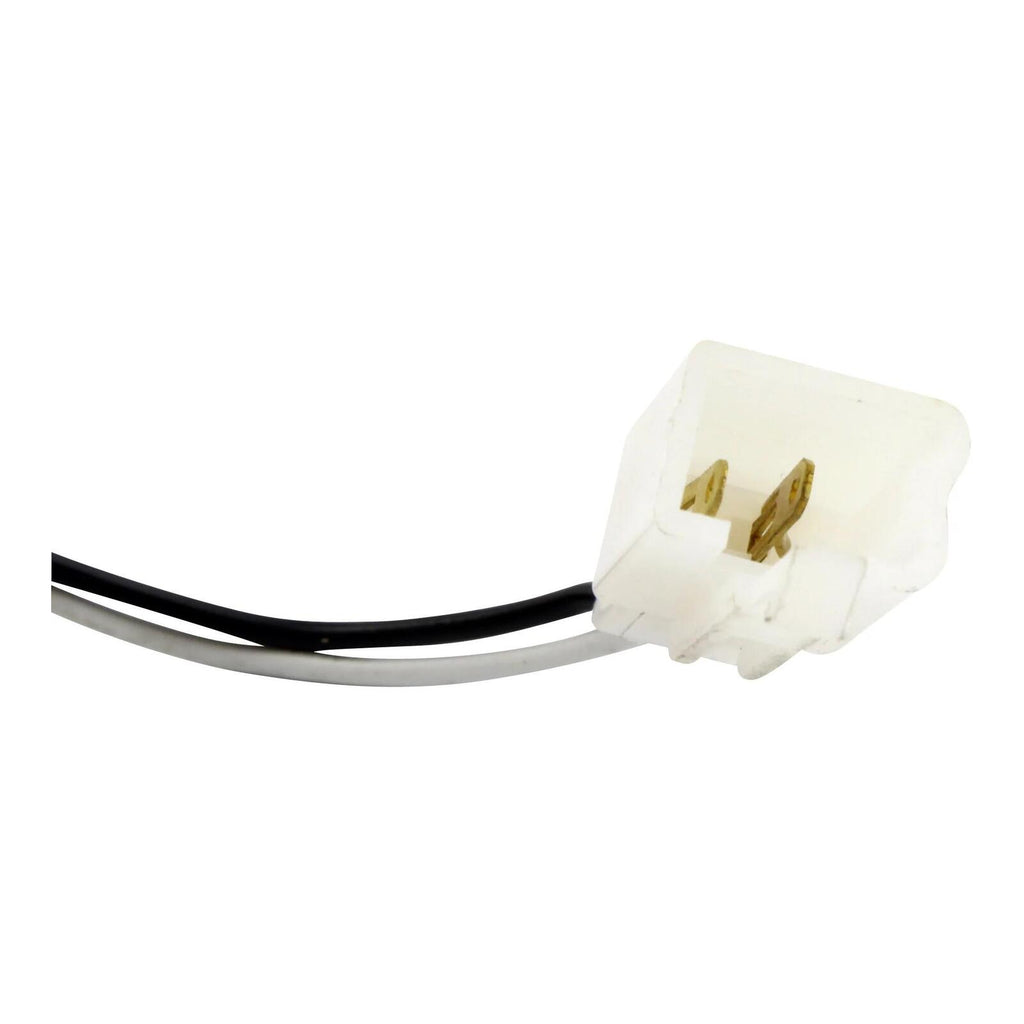

  • Connectors included.

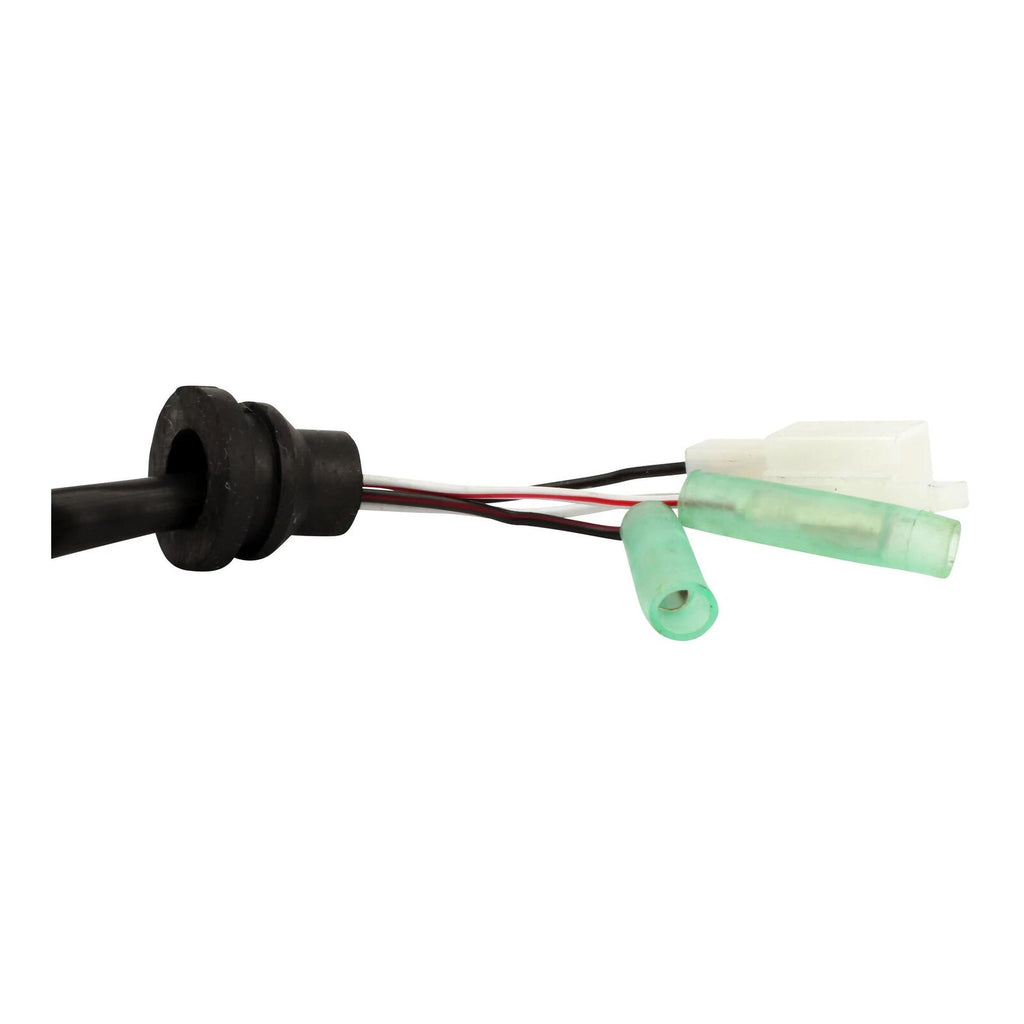

  • Rubber grommet included.

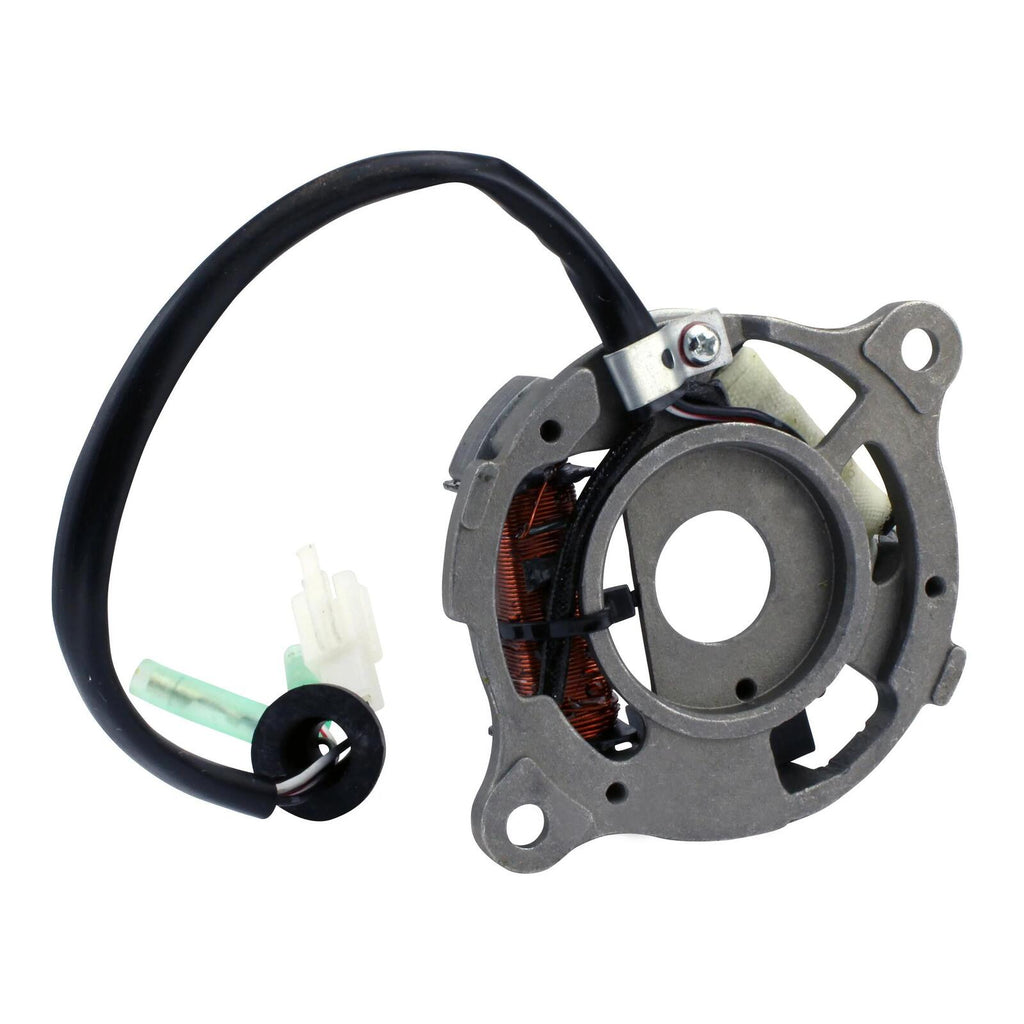

  • Back plate included.
  • Factory tested before shipping.

Dimensions:

  • Interior Diameter: 20.4 mm / 40.8 mm
  • Exterior Diameter: 89.3 mm / 111.6 mm
  • Thickness: 31 mm
  • Wire Length (Stator to Grommet): 40 mm
  • Wire Length (Grommet to Plug): 160 mm

Specifications:

  • Number of Wires: 4
  • Number of Plugs: 3
  • Number of Pins: 4
  • Number of Coils: 3
  • Alternator Resistance (White to Ground): 0.5 Ω ±20%
  • Pickup Resistance (White/Red to Ground): 20.1 Ω ±20%
  • Source Resistance (Black/Red to Ground): 302.6 Ω ±20%
