Stator Assorted Honda Models [Refer to Fitments] (RMS010-106839)


Title: STATOR ASSTD HON MODELS RFR FITMENTS (RMS010-106839)
Price:
Sale price$379.99

Description

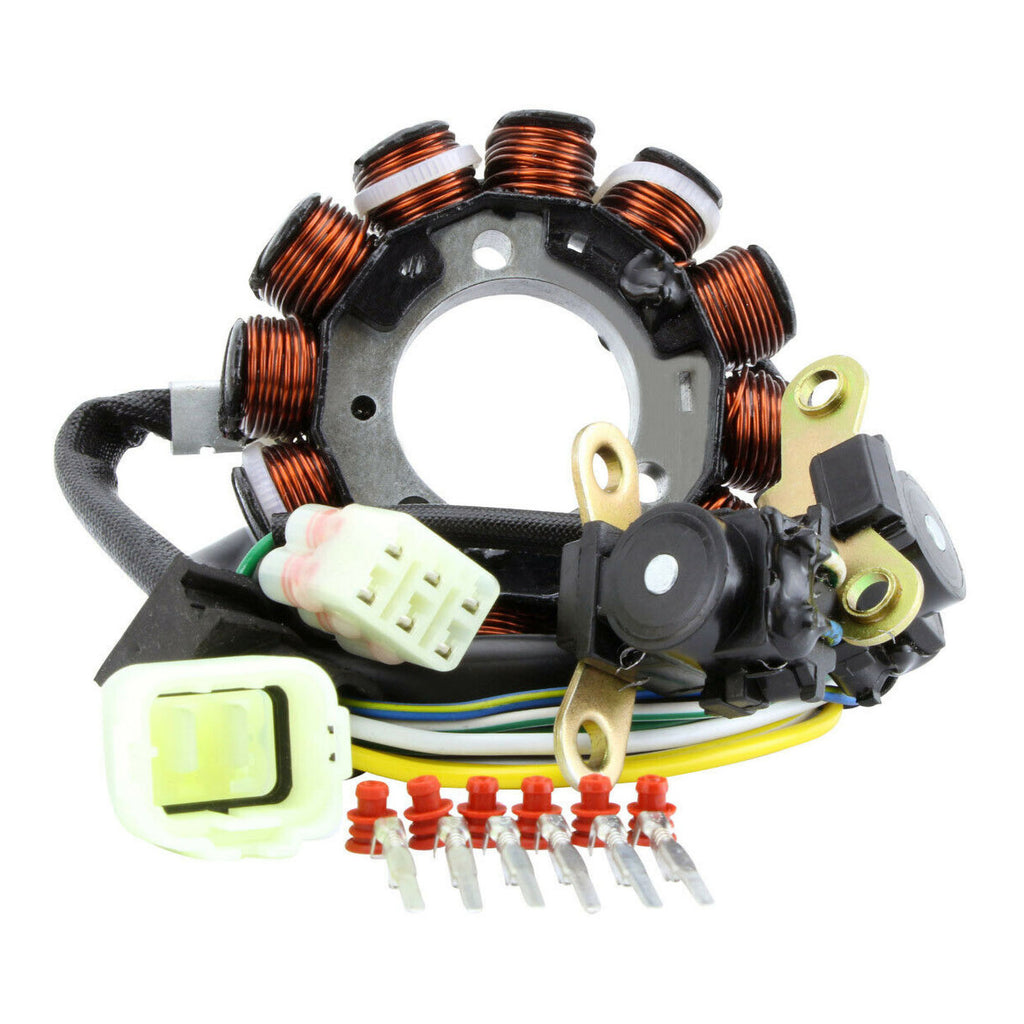

Brand new aftermarket stator.

  • Direct replacement to the original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Two pickup pulsar coils included
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted, corroded, defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before Installing the New Stator

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

The stator might have a different wire colThe code than the original part. All the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

  • Interior diameter: 32 mm
  • Exterior diameter: 77 mm
  • Thickness: 12.7 mm
  • Length of wires stator to grommet: 70 mm
  • Length of wires grommet to plug: 500 mm
  • Length of pickup coil wire to grommet: 55 mm

Other Specifications:

  • Number of wires: 6
  • Number of plugs: 1
  • Number of pins: 6
  • Number of poles: 12
  • Wire to wire resistance:
  • Alternator: White to Yellow = 2.1 ohms ±20%
  • Pickup #1: Blue/Yellow to Green/White = 242 ohms ±20%
  • Pickup #2: Green to White = 242 ohms ±20%
