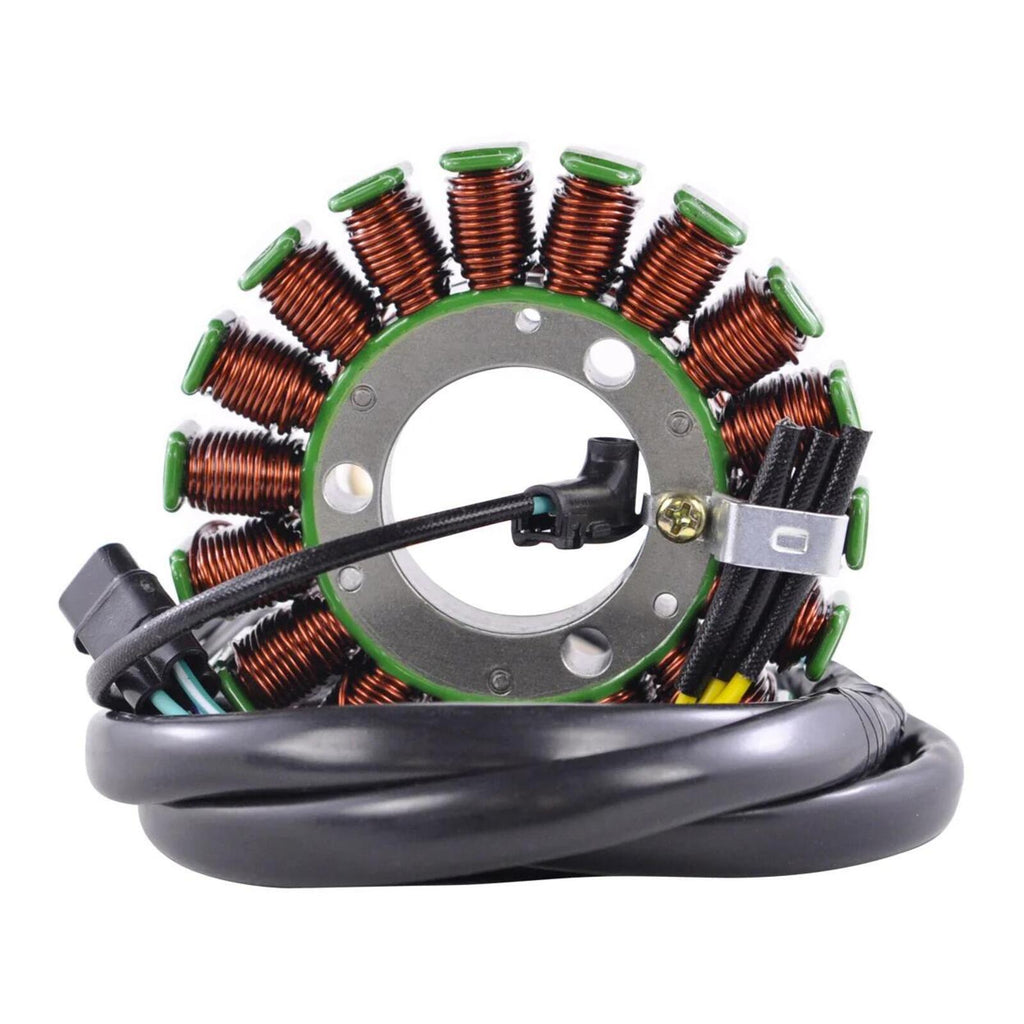

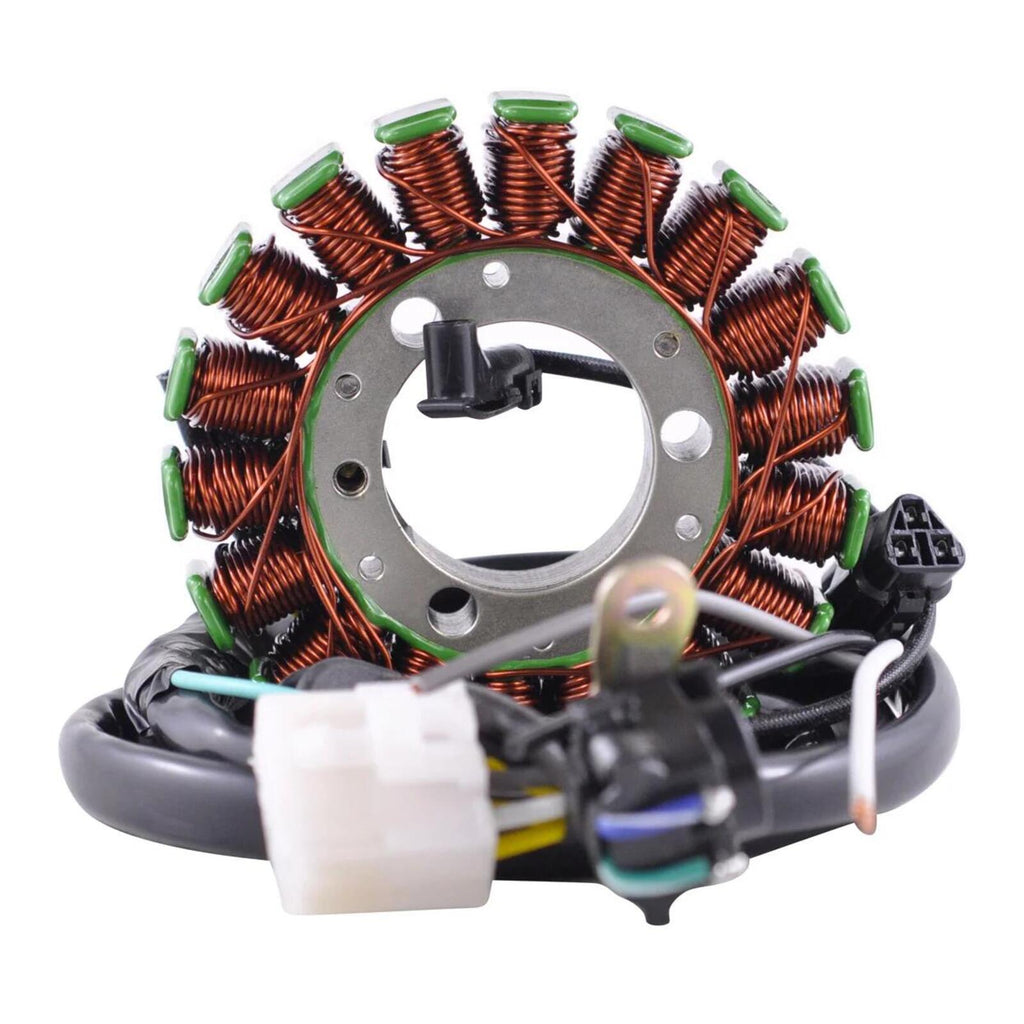

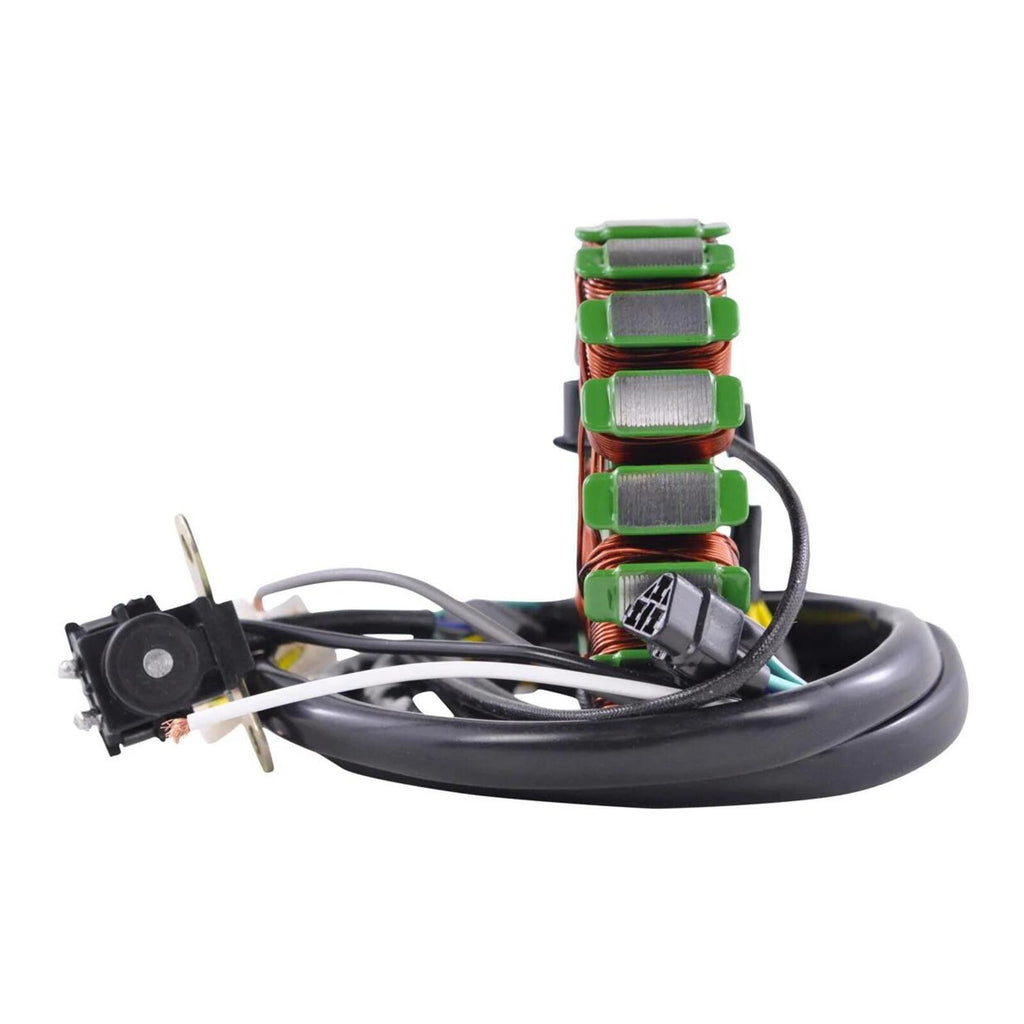

Stator - Kawasaki KLX250 S/SF ('09-'14) (RMS010-101405)


Price:
Sale price$392.99

Description

Brand new aftermarket stator designed as a direct replacement for the original unit. Manufactured using premium materials for reliable charging performance and long service life, this stator features high-grade copper windings, quality laminations, and includes the pickup pulsar coil, connectors, and rubber grommet for straightforward installation.

Features:

  • Direct replacement for the original stator.
  • Plug-and-play design for easy installation.
  • Manufactured using high-grade lamination materials.
  • Premium copper windings rated to withstand temperatures up to 200°C.
  • Pickup pulsar coil included.

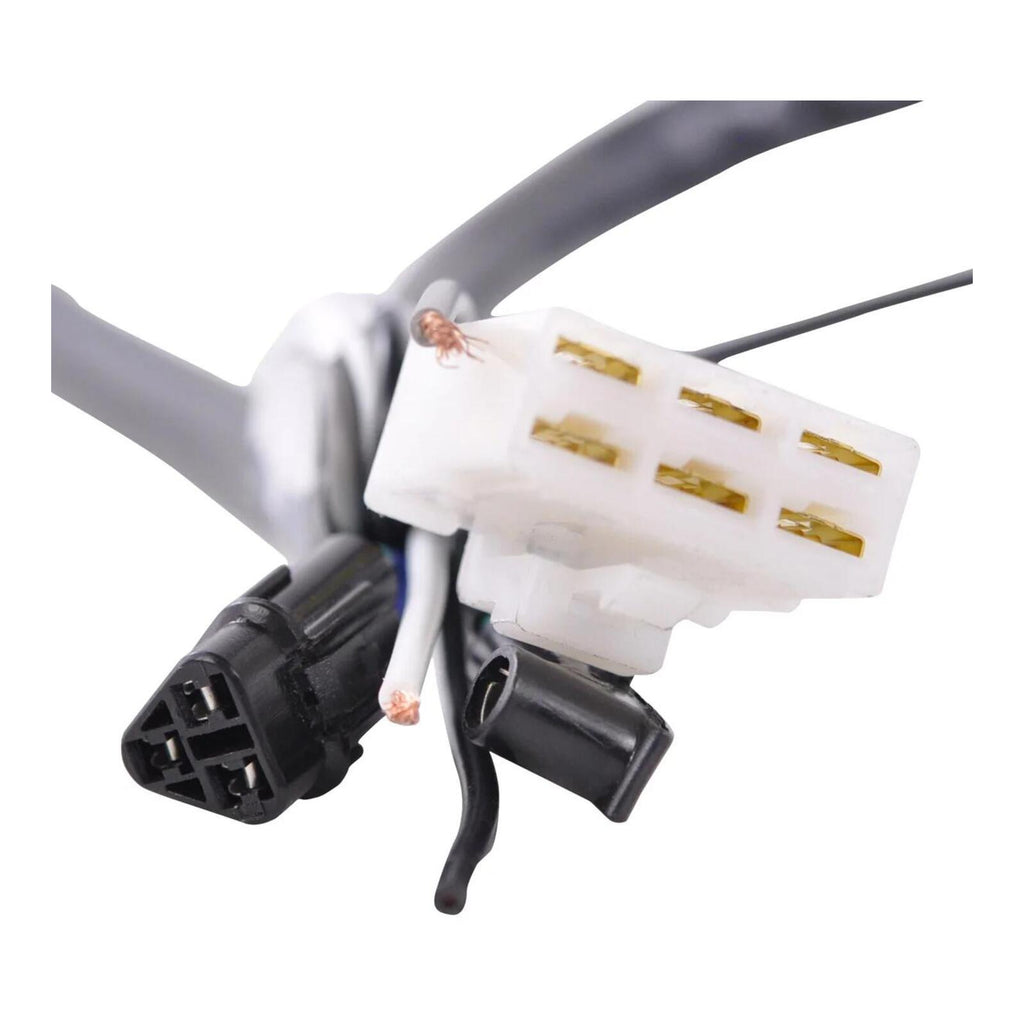

  • Connectors included.
  • Rubber grommet included.
  • Factory tested before shipping.

Dimensions:

  • Interior Diameter: 35 mm
  • Exterior Diameter: 93 mm
  • Thickness: 18 mm
  • Wire Length (Stator to Grommet): 155 mm
  • Wire Length (Grommet to Plug 1): 505 mm
  • Wire Length (Grommet to Plug 2): 810 mm
  • Wire Length (Grommet to Pickup Coil Plug): 72 mm
  • Wire Length (Pickup Coil to Grommet): 60 mm

Specifications:

  • Number of Wires: 13
  • Number of Plugs: 4
  • Number of Pins: 13
  • Alternator Resistance (Yellow to Yellow): 0.9 Ω ±20%
  • Pickup Resistance (Blue/White to Green/White): 244 Ω ±20%
