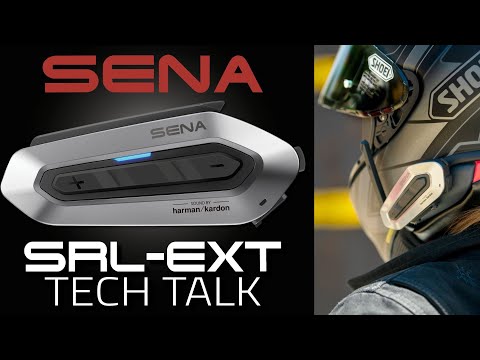

Sena SRL-EXT - Mesh Bluetooth for Shoei NXR-2

PREMIUM TECH FOR YOUR SHOEI HELMET

Communication by SENA, protection by SHOEI, and SOUND BY Harman Kardon.

The SRL-EXT was custom-designed for one of SHOEI’s customer- favourite helmets. The SRL-EXT is compatible with three regional SHOEI helmets; the RF-1400 for North America, the NXR2 for Europe, and the Z-8 for the Asia-Pacific market. The compact SRL-EXT offers both Mesh and Bluetooth intercom plus smartphone connectivity for music, GPS, phone calls, and more. SRL-EXT users will experience premium SOUND BY Harman Kardon audio inside of their SHOEI helmet.

Features:

• SOUND BY Harman Kardon
  Experience unmatched audio quality with premium SOUND BY Harman Kardon speakers and microphone.
• Mesh 3.0 Intercom™ (for firmware updated to v1.6)
  Enjoy a robust and reliable communication network for seamless connectivity.
• Bluetooth Intercom
  Easily connect headsets via Bluetooth for group intercom conversations.
• Bluetooth 5.0
  Compatible with the latest Bluetooth 5.0 technology for improved connectivity.
• Custom Helmet Fit
  Designed to integrate seamlessly into your helmet for optimal comfort and performance.
• Voice Command
  Control your Sena headset hands-free using voice commands.
• Advanced Noise Control™
  Reduces ambient noise for clearer intercom conversations.
• FM Radio
  Tune into your favourite local FM radio stations while on the go.

MESH and SOUND BY Harman Kardon. DESIGNED FOR SHOEI HELMETS

The SRL-EXT was tailored specifically for the SHOEI RF-1400, NXR2, and Z-8 helmets. The shape of the SRL-EXT main module and external battery are curved to match the exterior curves of the helmet. The SRL-EXT main module is installed on the left side of the helmet, while the external battery adheres to the right side of the helmet.

HANDS-FREE CONVENIENCE WITH SENA’S VOICE COMMANDS

Convenient voice commands allow you to control the SRL-EXT’s system functions, such as answering the phone or starting up a Group Mesh session. The SRL-EXT supports voice commands in eight languages: English, French, German, Spanish, Italian, Chinese, Japanese, and Russian!

Looking for a bite to eat? “Hey Google, directions to the nearest sandwich shop.” The SRL-EXT easily connects to Google Assistant and Apple’s Siri with a simple voice command allowing you to tap into the power of your smartphone’s features, including GPS navigation, music playback, voice dialing, plus a variety of other digital assistant features.

MESH AND BLUETOOTH® INTERCOM

The SRL-EXT offers both Mesh Intercom™ and traditional 4-way Bluetooth® intercom, allowing for compatibility with any Sena or Sena-powered device. Sena’s industry-leading Mesh Intercom™ communication platform has two modes: Multi-Channel Open Mesh Intercom™ (Open Mesh) and Group Mesh Intercom™.

Open Mesh offers a single push of a button to click-to-connect to the Mesh Intercom™ network and features the industry’s first Mesh Intercom™ channel system. Like standard handheld or CB radios, Open Mesh lets users switch between nine channels. It also supports a near-limitless number of users within a range of up to 5 miles / 8 km (min. 6 riders @ 1 mi / 1.6 km intervals).

Group Mesh supports a single, private group for up to 24 participants and the same range as Open Mesh for a more intimate group conversation. Only invited users can join the Group Mesh chat. Open Mesh and Group Mesh provide unprecedented intercom audio quality and robust connectivity.

SOUND BY Harman Kardon

The SRL-EXT’s speakers and microphone were created with the audio experts at Harman Kardon to provide world-class sound inside your SHOEI helmet. Expertly crafted speakers and an all-new microphone allow the SRL-EXT to deliver an unmatched audio experience. The speakers send clear audio to riders’ ears while the microphone, with a redesigned sensor, provides robust performance for voice communication. Users will be able to switch between the wired boom microphone and the wired microphone. Experience SOUND BY Harman Kardon inside of your SHOEI helmet with the SRL-EXT.

Specifications:

• Dimensions:
  • Main Module: 108 mm x 44 mm x 20 mm (4.3 in x 1.7 in x 0.8 in)
  • Speaker Driver Unit: 40 mm—thickness 7.3 mm
  • Boom Microphone: length 60 mm
  • Wire Between Speakers: length 360 mm
• Weight:
  • Main Module: 48 g (1.69 oz)
• Operating Temperature:
  • -10 °C – 50 °C (14 °F – 122 °F)
• Mesh Network
  • Mesh 3.0 Intercom™ Technology (for firmware updated to v1.6)
• Bluetooth
  • Version: Bluetooth 5.0
  • Profiles Supported:
    • Headset Profile (HSP)
    • Hands-Free Profile (HFP)
    • Advanced Audio Distribution Profile (A2DP)
    • Audio Video Remote Control Profile (AVRCP)
• Intercom
  • Working Distance:
    • Bluetooth Intercom: Up to 2 km (1.2 miles) in open terrain
    • Mesh Intercom™: Up to 2 km (1.2 miles)* in open terrain
      *Can extend up to 8 km (5 miles) between a minimum of 6 riders
  • Maximum Connections:
    • Bluetooth Intercom: Up to 4 riders
    • Open Mesh Intercom: Virtually limitless
    • Group Mesh Intercom: Up to 24 riders
  • Channels:
    • Open Mesh Intercom: 9 channels
• FM Radio
  • Frequency Range: 76 – 108 MHz
  • Preset Memory: 10 stations
• Audio
  • Noise Cancellation: Advanced Noise Control™
  • Codec: Built-in SBC Codec
  • Audio Components: Premium speakers and microphone with SOUND BY Harman Kardon
• Battery
  • Talk Time:
    • Bluetooth Intercom: Up to 16 hours
    • Mesh Intercom™: Up to 12 hours
  • Charging Time: 2.5 hours
  • Battery Type: Lithium Polymer
