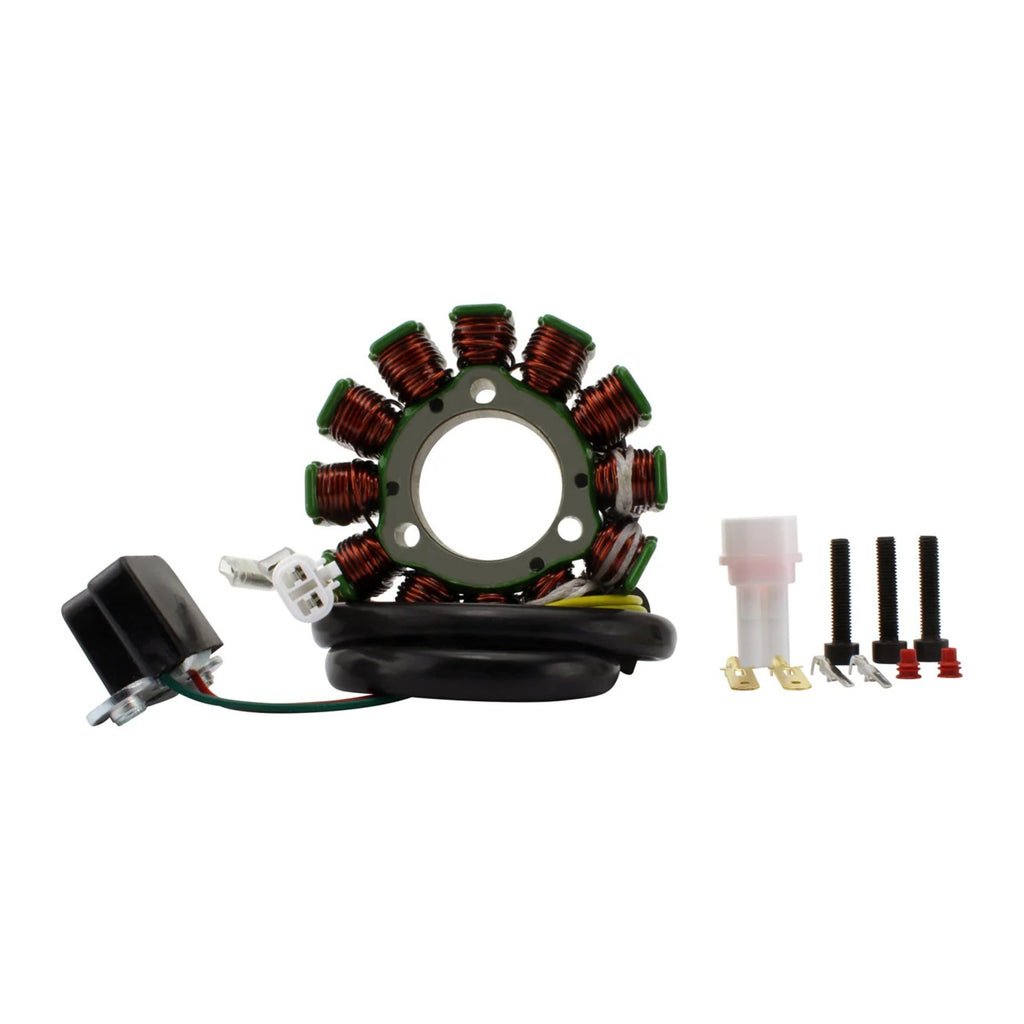

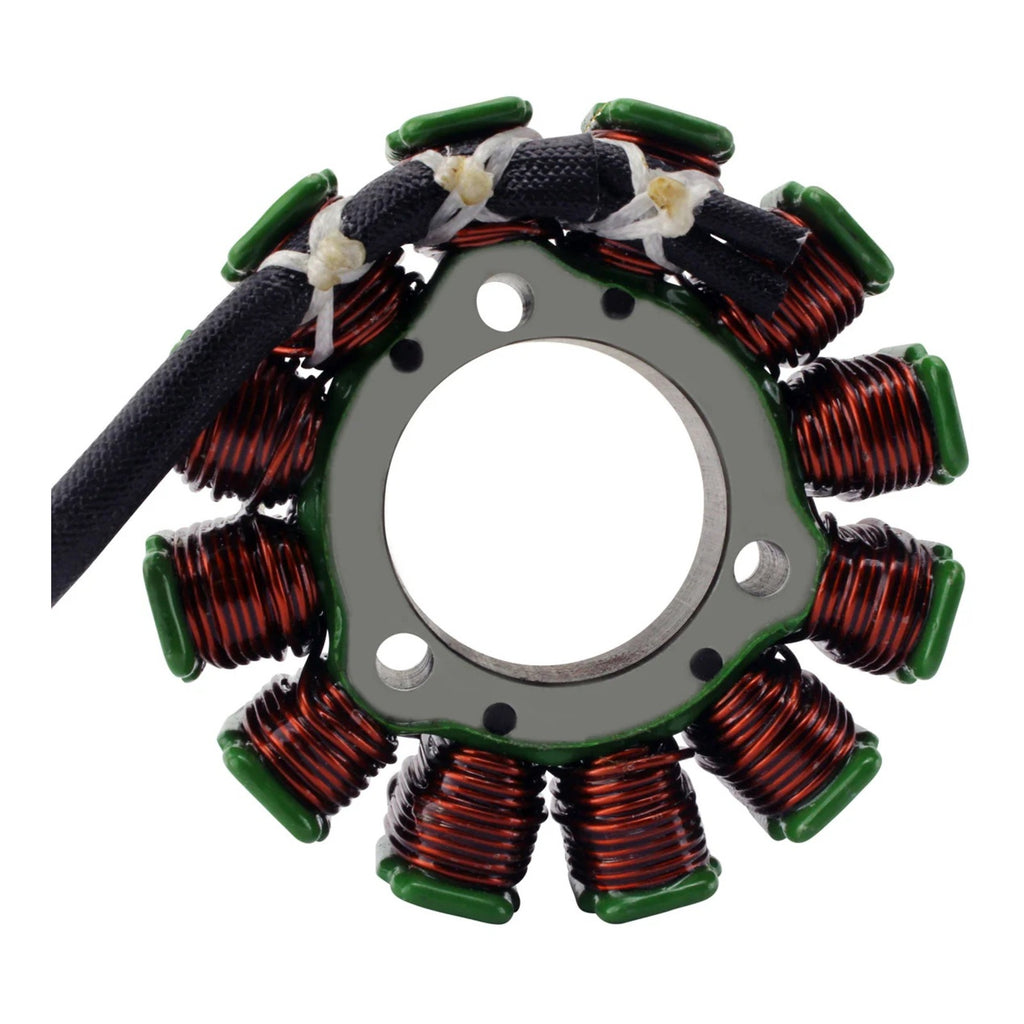

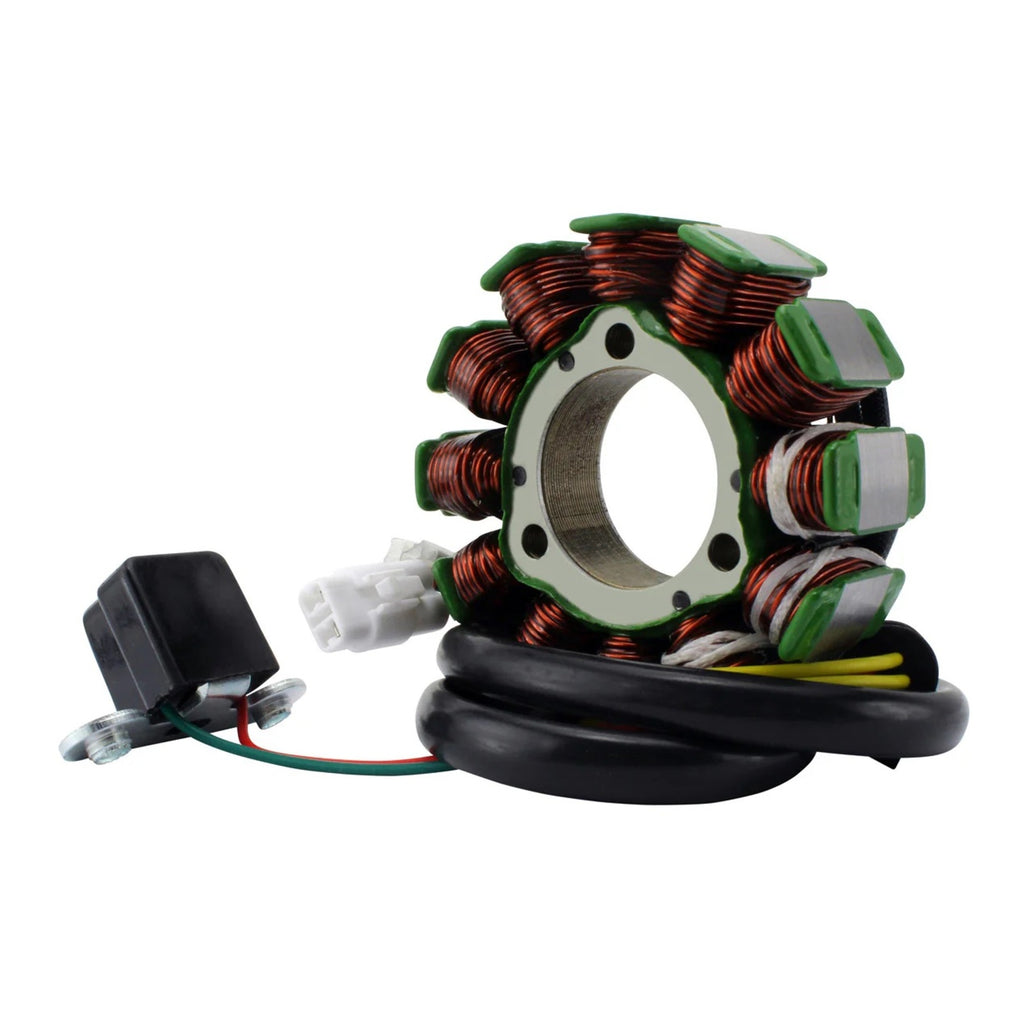

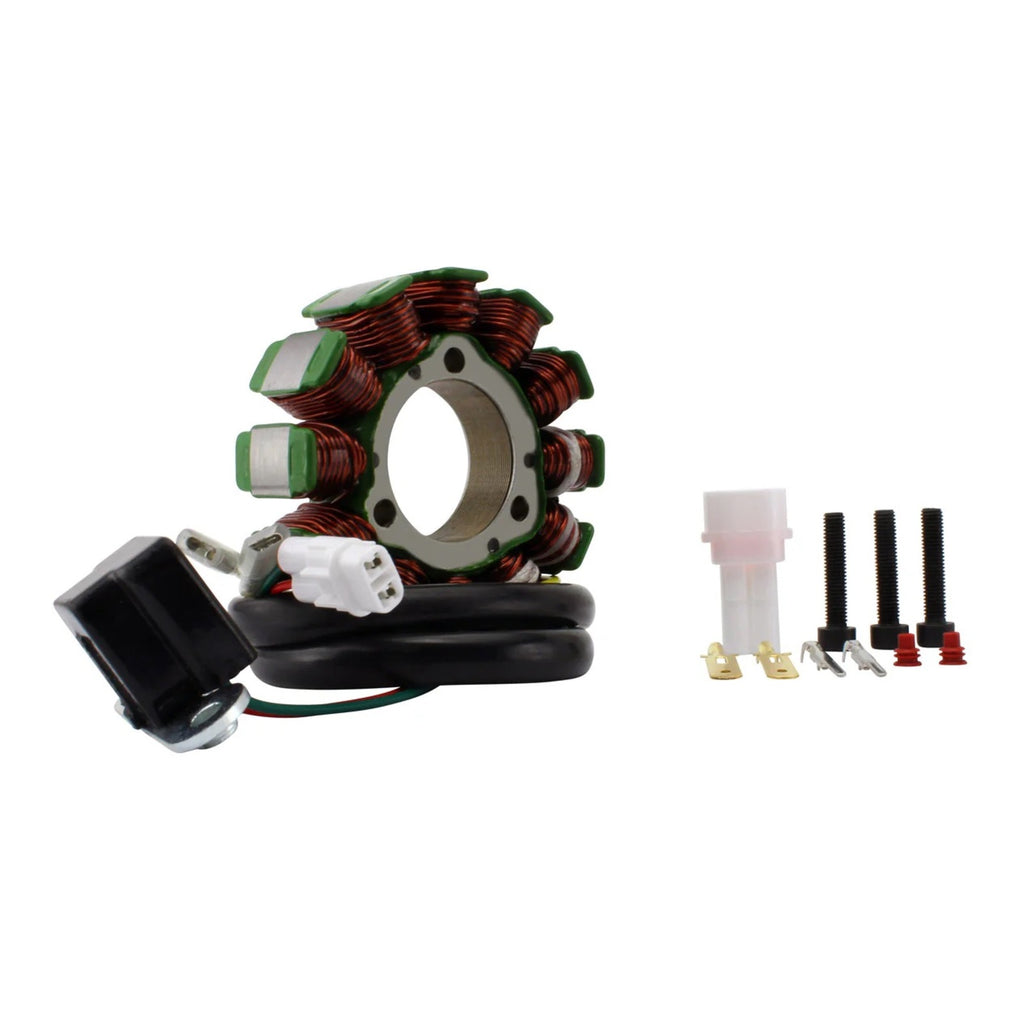

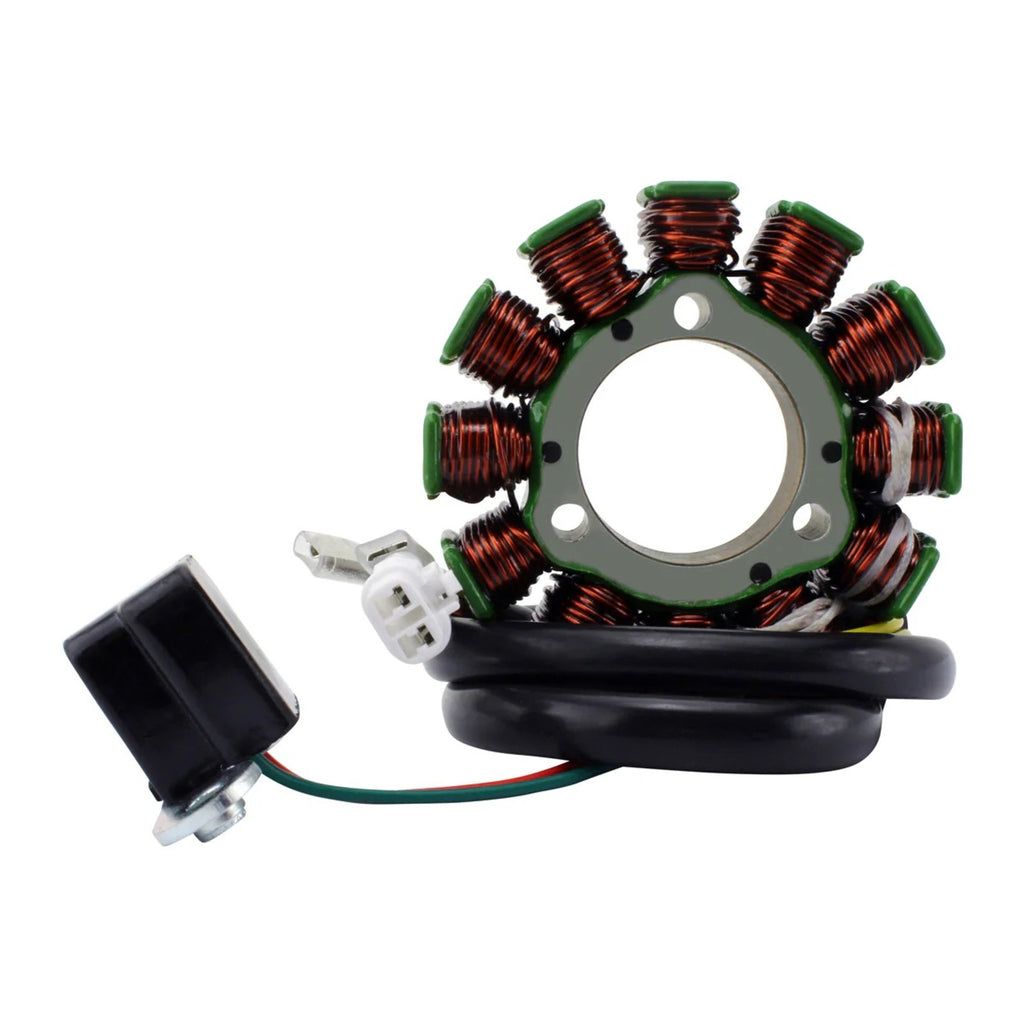

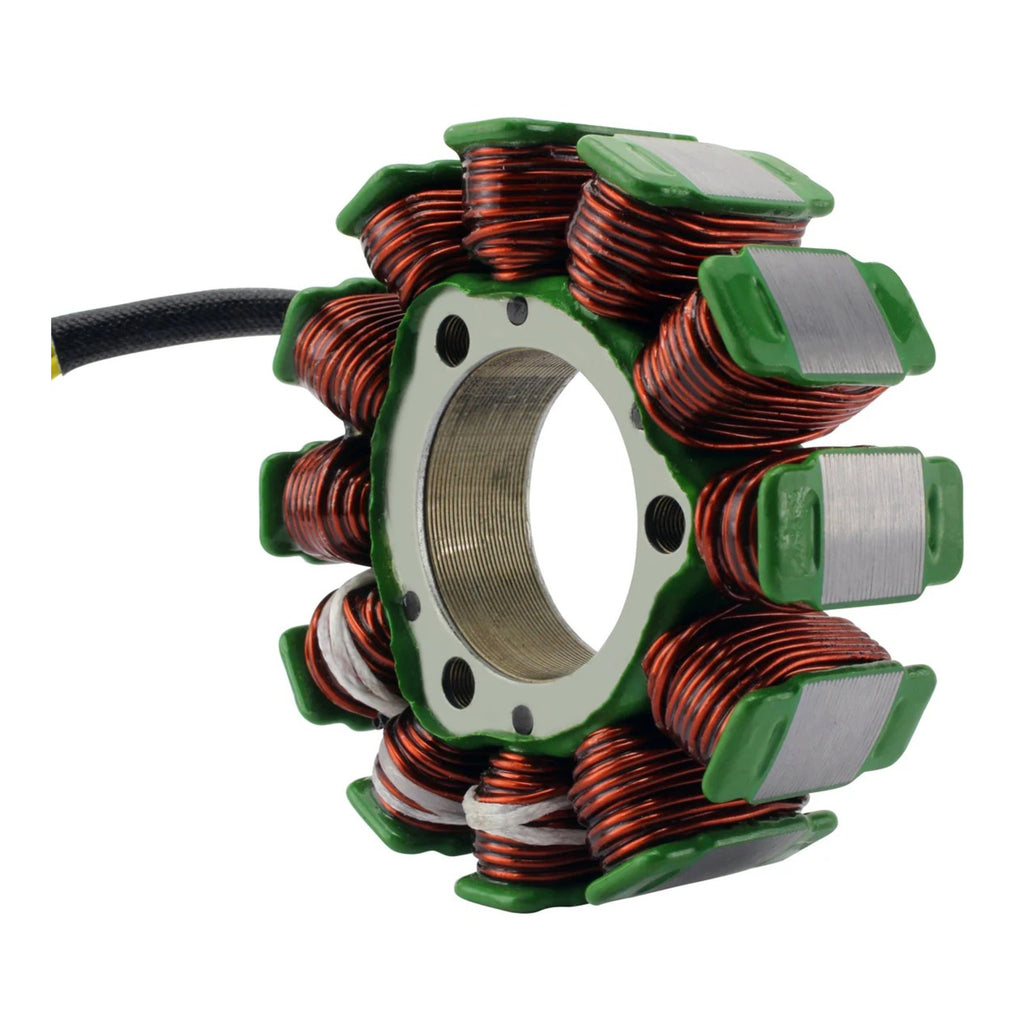

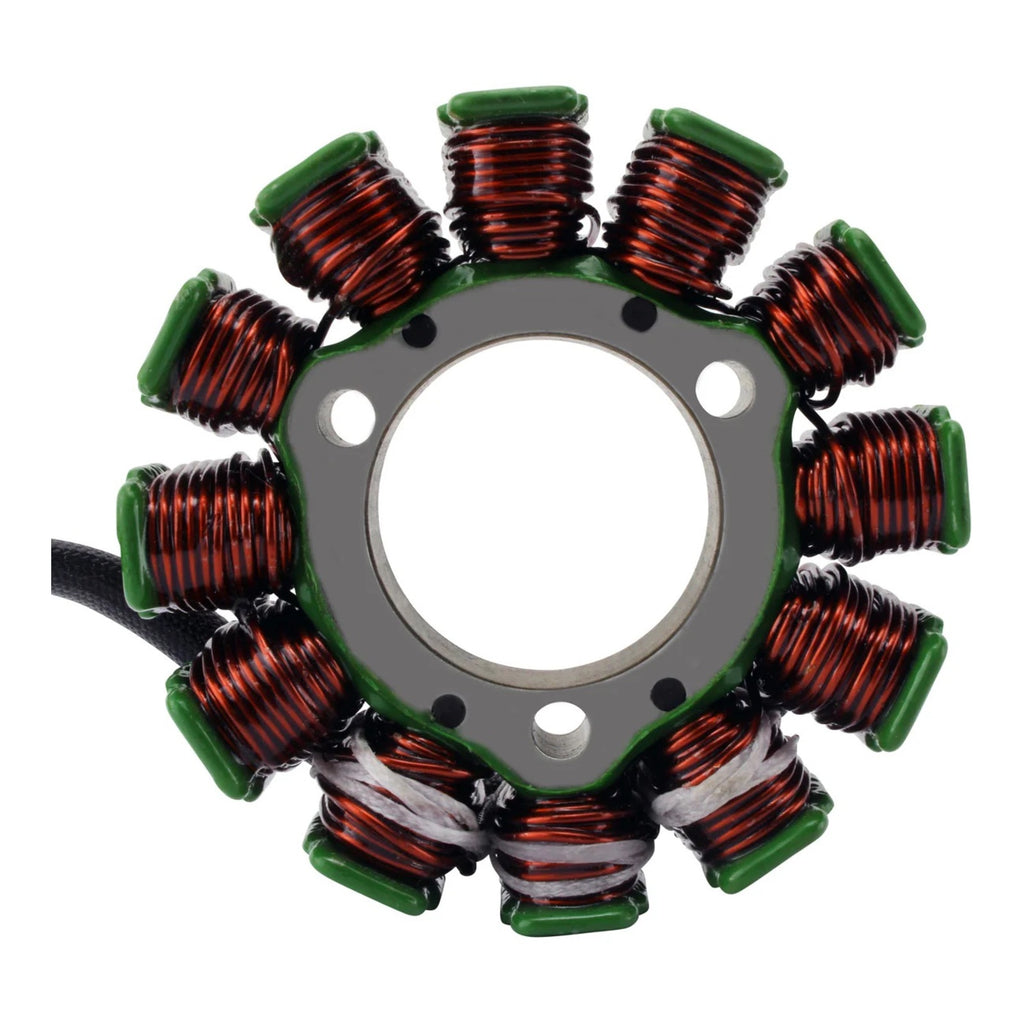

80W High Output Stator – KTM / GasGas / Husqvarna Models


Price:
Sale price$432.99

Description

Brand new aftermarket stator. Direct replacement for your original unit.

Features:

  • 80W DC output
  • Significantly increased power output
  • Plug-and-play design for easy installation
  • High-grade lamination materials

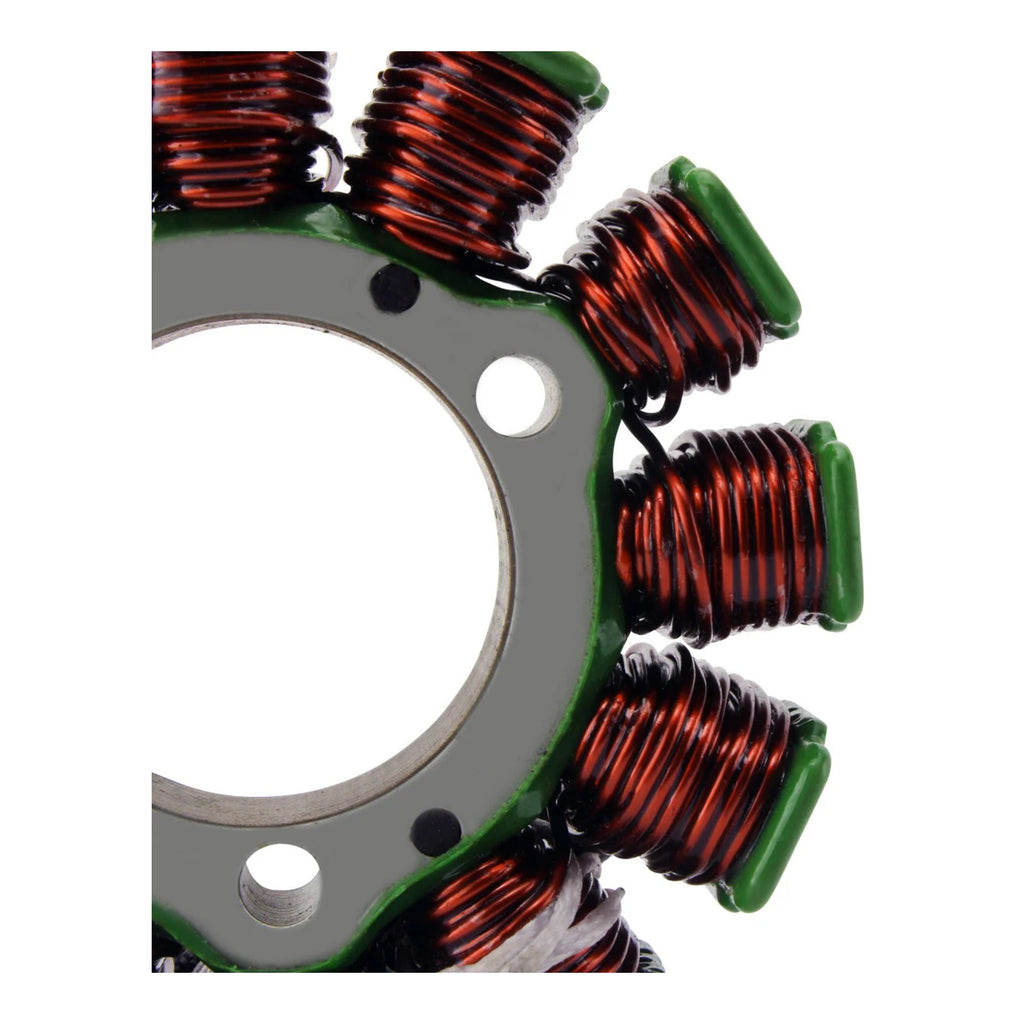

  • Premium copper windings, resistant up to 200°C

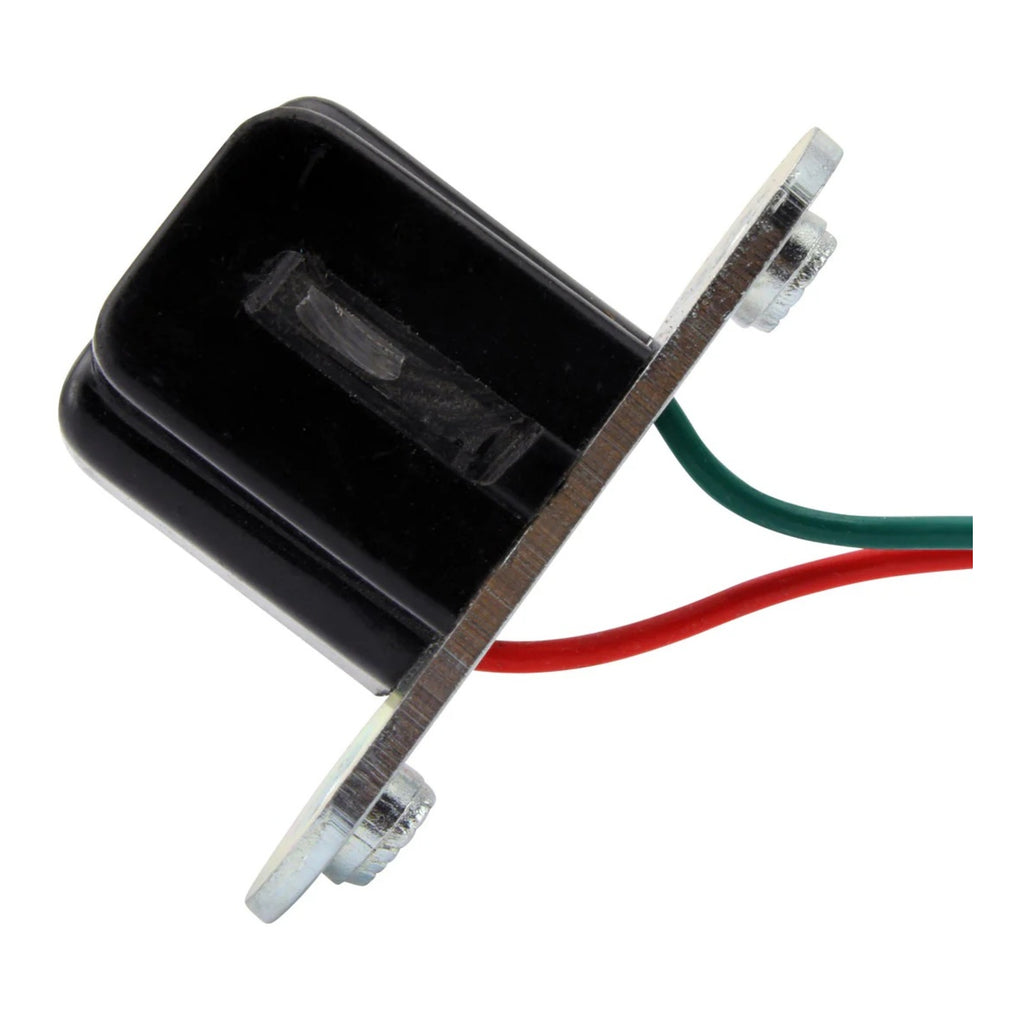

  • Pickup pulsar coil included

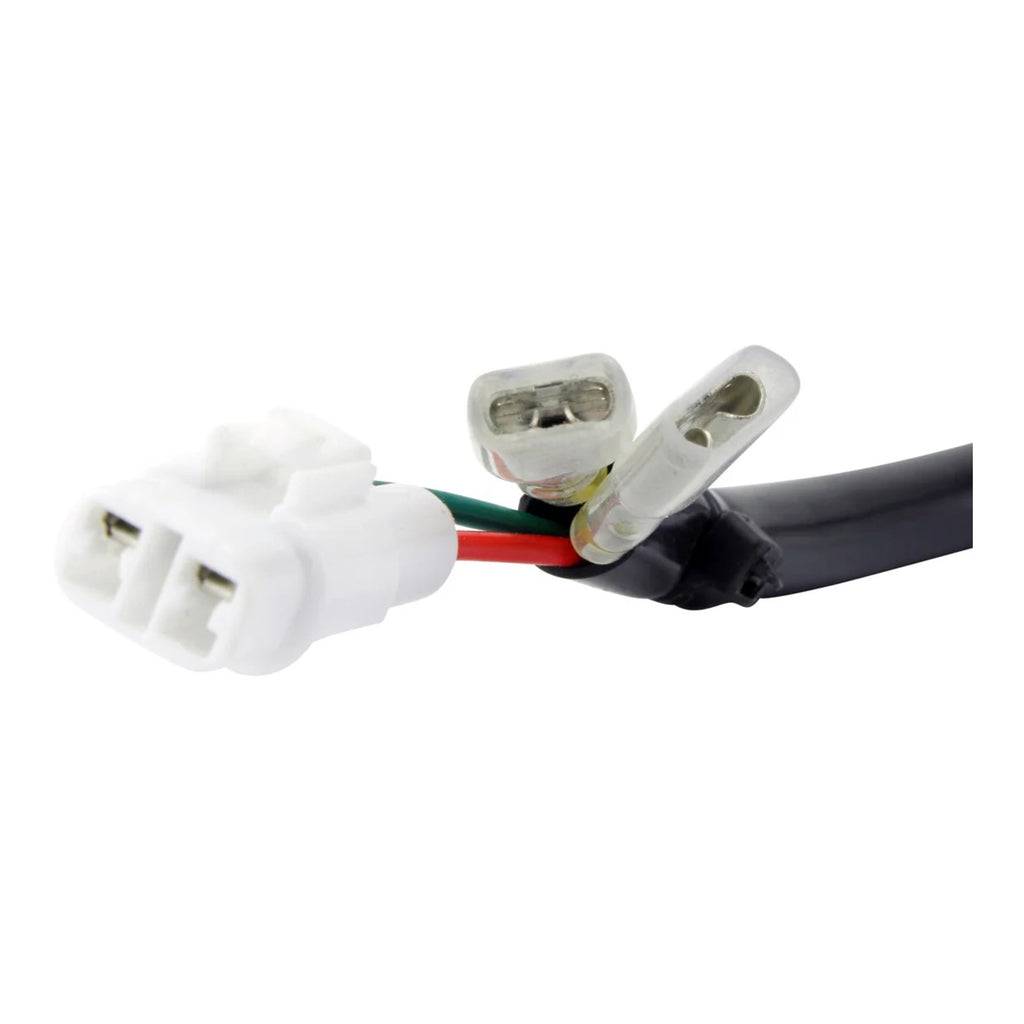

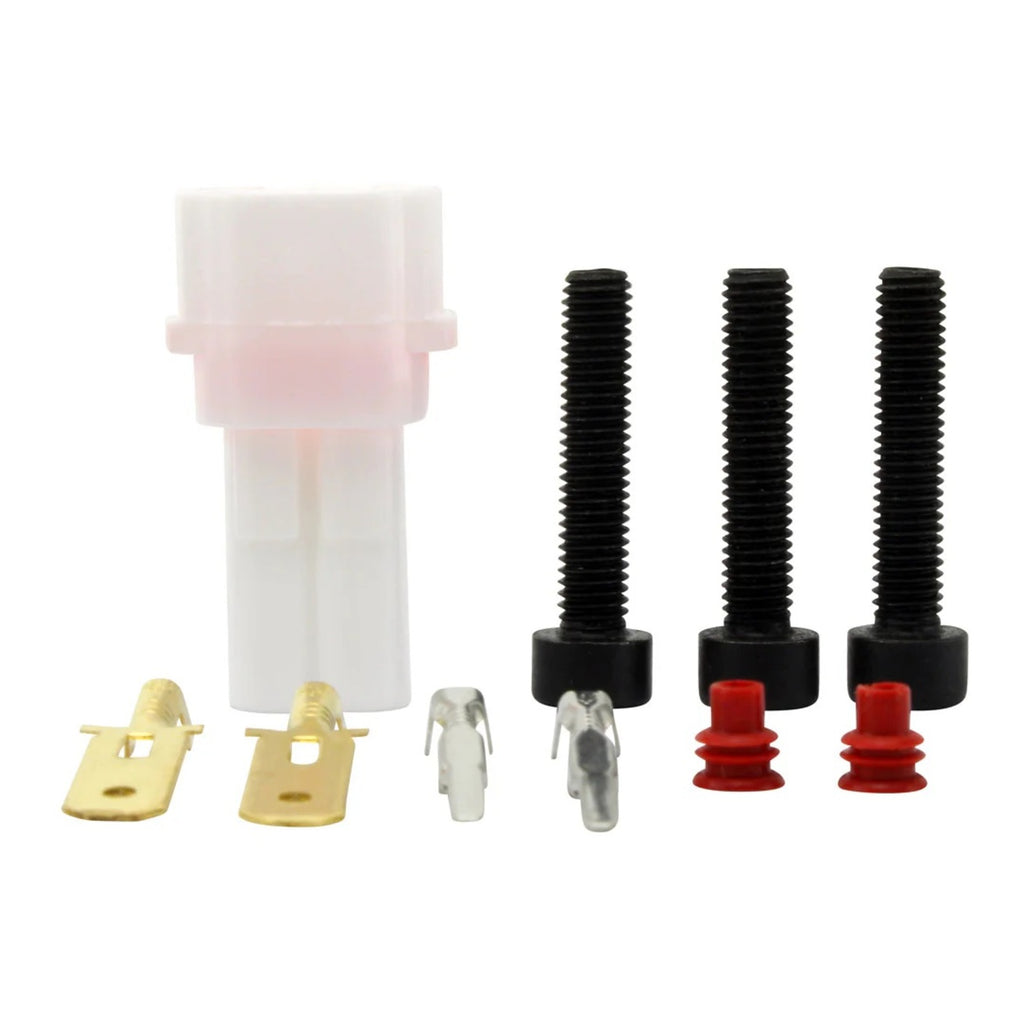

  • Connectors included

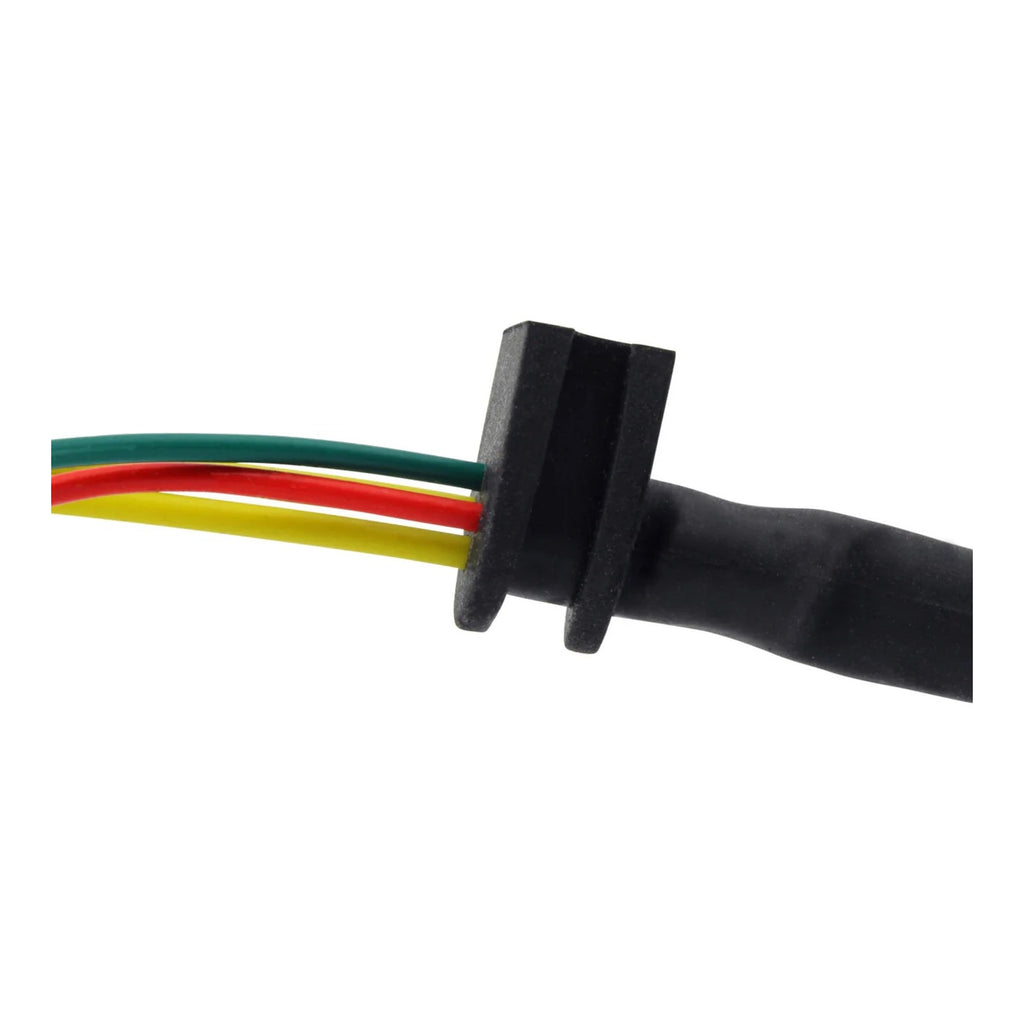

  • Rubber grommet included
  • All units are tested before shipping

Technical Data

Dimensions

  • Interior Diameter: 32mm
  • Exterior Diameter: 76mm
  • Thickness: 17 mm

Wire Lengths

  • Stator to Grommet: 125mm
  • Grommet to Plug: 510mm
  • Pickup Coil to Grommet: 100mm

Electrical Specifications

  • Number of Wires: 4
  • Number of Plugs: 1
  • Number of Pins: 4
  • Number of Poles: 12

Resistance Values

  • Alternator (Yellow to Yellow): 0.4 Ω ±20%
  • Alternator (Yellow to Ground): O.L (no continuity)
  • Pickup Coil (Green to Red): 133 Ω ±20%
